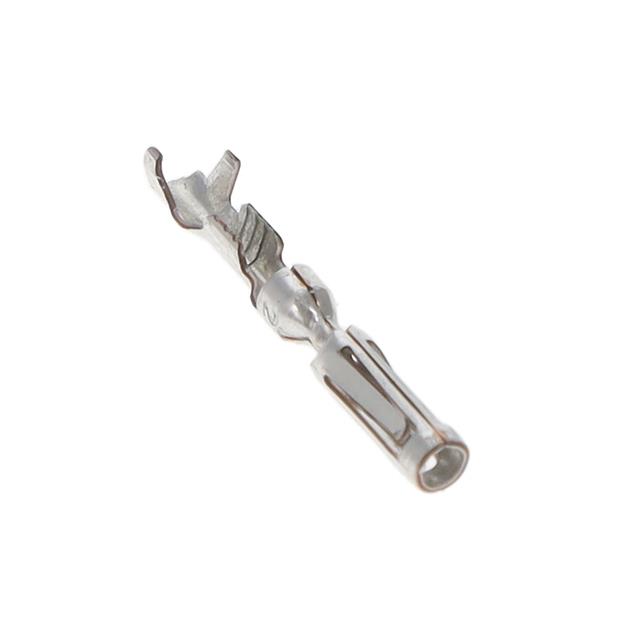

770520-6
ActiveTE Connectivity AMP Connectors
AMPSEAL,TERMINAL,TIN PLATE,22-24
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsAmpSeal Connector Spec Sheet
770520-6
ActiveTE Connectivity AMP Connectors
AMPSEAL,TERMINAL,TIN PLATE,22-24
Deep-Dive with AI
DocumentsAmpSeal Connector Spec Sheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 770520-6 | 770520 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | 0.75 µm | 0.75 µm |
| Contact Finish Thickness | 29.5 µin | 29.5 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 24 AWG | 20 - 24 AWG |
| Wire Gauge [Min] | 22 AWG | 16 - 22 AWG |
770520 Series
CONN SOCKET 16-20AWG CRIMP TIN
| Part | Contact Finish | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness | Type |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 770520-1 | Tin | Crimp | 16 AWG | 20 AWG | Socket | |||
TE Connectivity AMP Connectors 770520-3 | Gold | Crimp | 16 AWG | 20 AWG | Socket | |||
TE Connectivity AMP Connectors 770520-6 | Tin | Crimp | 22 AWG | 24 AWG | Socket | 0.75 µm | 29.5 µin | Stamped |
TE Connectivity AMP Connectors 1-770520-1 | Gold | Crimp | 22 AWG | 24 AWG | Socket | 0.75 µm | 29.5 µin | Stamped |
TE Connectivity AMP Connectors 770520-8 | Gold | Crimp | 20 AWG | 22 AWG | Socket | 0.75 µm | 29.5 µin | Stamped |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.18 | |
| 10 | $ 0.15 | |||
| 25 | $ 0.14 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| 2500 | $ 0.10 | |||
| Tape & Reel (TR) | 5000 | $ 0.08 | ||
| 10000 | $ 0.07 | |||
| 15000 | $ 0.07 | |||
| 25000 | $ 0.07 | |||
| 35000 | $ 0.07 | |||
| 50000 | $ 0.06 | |||
| 125000 | $ 0.06 | |||
Description
General part information
770520 Series
Socket Contact Tin 22-24 AWG Crimp Stamped
