Description
General part information

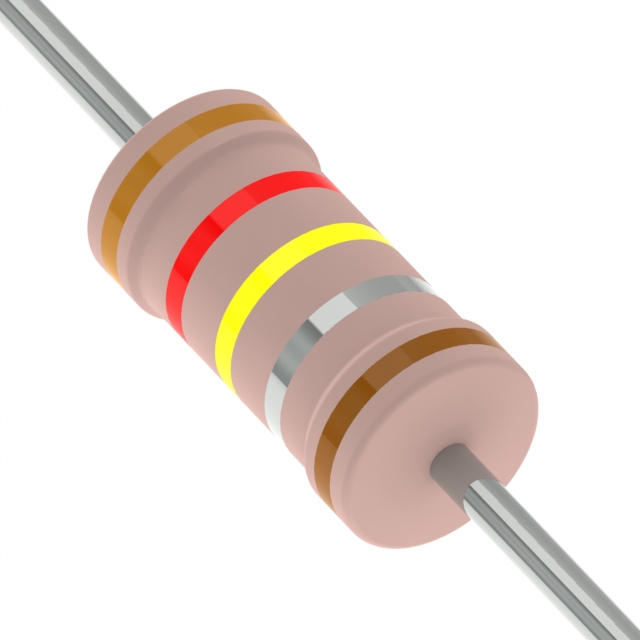

FMP200FBF52-3R24
3.24 Ohms ±1% 2W Through Hole Resistor Axial Flame Proof, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | FMP200FBF52-3R24 |
|---|---|
| Composition | Metal Film |
| Features | Safety, Flame Proof |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 2 w |
| Resistance | 3.24 Ohms |
| Size / Dimension Diameter | 0.154 in |
| Size / Dimension Length | 0.354 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
