2908174

Active

Phoenix Contact

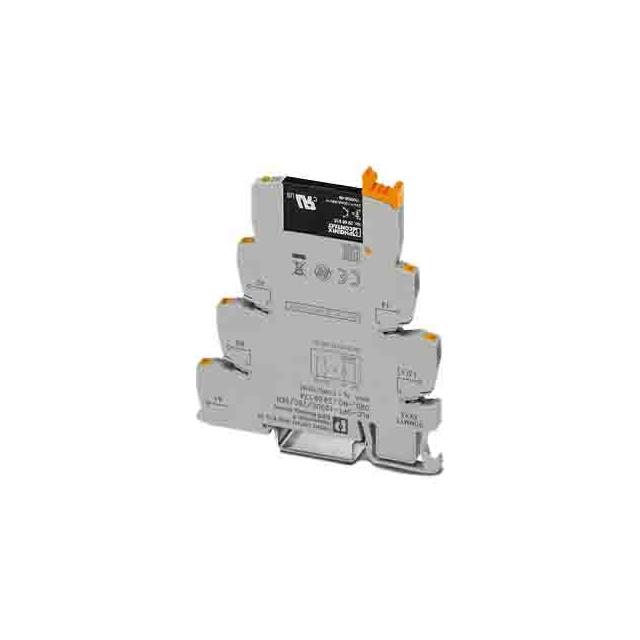

SSR RELAY SPST-NO 3MA 5-30V

Search across all available documentation for this part.

Active

Phoenix Contact

SSR RELAY SPST-NO 3MA 5-30V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2908174	290817 Series

Approval Agency	DNV, UKCA, CE	DNV, UKCA, CE, EN, IEC
Load Current	3 mA	3 mA
Mounting Type	DIN Rail	DIN Rail
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 - -20 °C
Output Type	DC	DC
Package / Case	Module	Module
Supplier Device Package	Module	Module
Termination Style	Spring Terminal	Spring Terminal, Screw Terminal
Voltage - Input	120 VAC	120 - 230 VAC
Voltage - Load [Max]	30 V	30 V
Voltage - Load [Min]	5 V	5 V

SSR RELAY SPST-NO 3MA 5-30V

Part	Voltage - Input	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Load Current	Mounting Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Output Type	Supplier Device Package
Phoenix Contact 2908176	230 VAC	5 V	30 V	Spring Terminal	3 mA	DIN Rail	CE, DNV, UKCA	-25 °C	60 °C	Module	DC	Module
Phoenix Contact 2908175	120 VAC	5 V	30 V	Screw Terminal	3 mA	DIN Rail	EN, IEC	-20 C	60 °C	Module	DC	Module
Phoenix Contact 2908177	230 VAC	5 V	30 V	Screw Terminal	3 mA	DIN Rail	EN, IEC	-20 C	60 °C	Module	DC	Module
Phoenix Contact 2908174	120 VAC	5 V	30 V	Spring Terminal	3 mA	DIN Rail	CE, DNV, UKCA	-25 °C	60 °C	Module	DC	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 33.02

General part information

Solid State SPST-NO (1 Form A) Module

Technical documentation and resources
