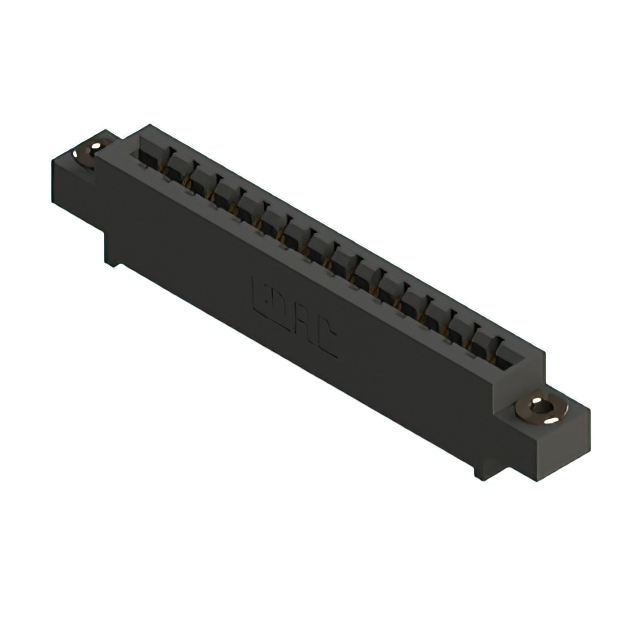

387-015-520-603
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 15 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-015-520-603
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 15 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-015-520-603 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
387-015 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Color | Material - Insulation | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Termination Rows | Gender | Number of Rows | Mounting Type | Contact Type | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Gold | -40 °C | 105 ░C | 15 | Black | Polyester Thermoplastic | Single | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Female | 1 | Through Hole | Cantilever | 15 | 0.156 in | 3.96 mm | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Gold | -40 °C | 105 ░C | 15 | Black | Polyester Thermoplastic | Single | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Female | 1 | Through Hole | Cantilever | 15 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Gold | -40 °C | 105 ░C | 15 | Black | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Female | 1 | Through Hole | Cantilever | 15 | 0.156 in | 3.96 mm | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Gold | -40 °C | 105 ░C | 15 | Black | Polyester Thermoplastic | Single | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Female | 1 | Through Hole | Cantilever | 15 | 0.156 in | 3.96 mm | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Gold | -40 °C | 105 ░C | 15 | Black | Polyester Thermoplastic | Single | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Female | 1 | Through Hole | Cantilever | 15 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Gold | -40 °C | 105 ░C | 15 | Black | Polyester Thermoplastic | Single | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Female | 1 | Through Hole Right Angle | Cantilever | 15 | 0.156 in | 3.96 mm | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Gold | -40 °C | 105 ░C | 15 | Black | Polyester Thermoplastic | Single | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Female | 1 | Through Hole | Cantilever | 15 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Gold | -40 °C | 105 ░C | 15 | Black | Polyester Thermoplastic | Single | Side Mount Opening Unthreaded | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Female | 1 | Through Hole | Cantilever | 15 | 0.156 in | 3.96 mm | 3.25 mm | 0.128 in | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Gold | -40 °C | 105 ░C | 15 | Black | Polyester Thermoplastic | Single | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Female | 1 | Through Hole | Cantilever | 15 | 0.156 in | 3.96 mm | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Gold | -40 °C | 105 ░C | 15 | Black | Polyester Thermoplastic | Single | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Female | 1 | Through Hole | Cantilever | 15 | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-015 Series
15 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
