TDS3011P.C
ActiveSemtech Corporation
SURGESWITCH, 1-LINE 30V EOS PROT
TDS3011P.C
ActiveSemtech Corporation
SURGESWITCH, 1-LINE 30V EOS PROT
Description
General part information
TDS3011P.C

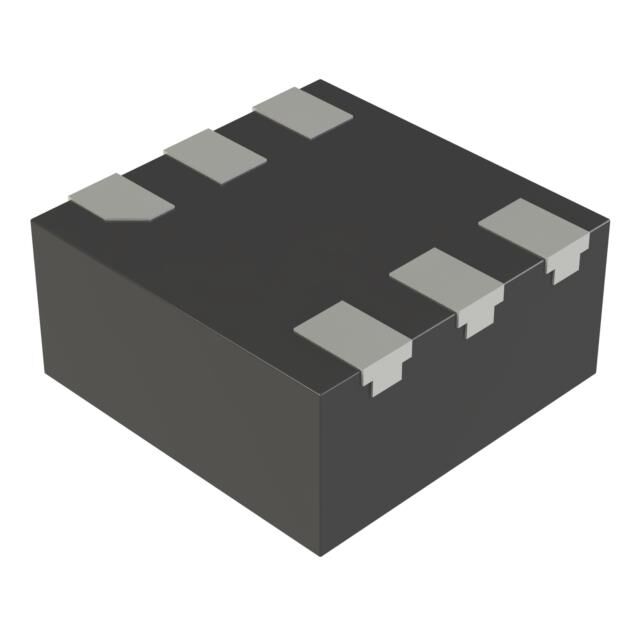

40V Clamp 35A (8/20µs) Ipp Tvs Diode Surface Mount 6-DFN (1.6x1.6)
Technical Specifications
Parameters and characteristics for this part
| Specification | TDS3011P.C |
|---|---|
| Applications | USB |
| Capacitance | 170 pF |
| Current - Peak Pulse | 35 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-UFDFN |
| Package Length | 1.6 mm |
| Package Name | 6-DFN |
| Package Width | 1.6 mm |
| Power - Peak Pulse | 1400 W |
| Power Line Protection | No |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 34 V |
| Voltage - Clamping (Max) | 40 V |
| Voltage - Reverse Standoff (Max) | 30 V |
