1116062-2
ActiveTE Connectivity AMP Connectors

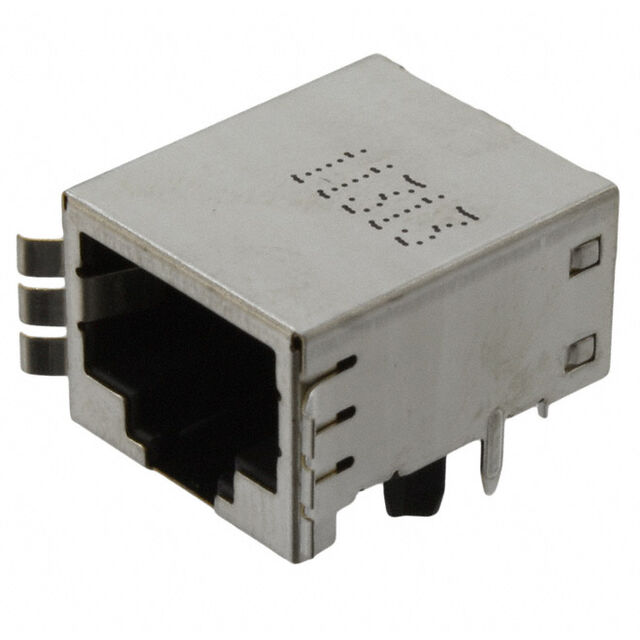

CONN MOD JACK 8P8C R/A SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
1116062-2
ActiveTE Connectivity AMP Connectors
CONN MOD JACK 8P8C R/A SHIELDED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1116062-2 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Housing Material | Polyamide (PA), Nylon |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole, Cutout, Board Edge |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Ratings | Cat5 |
| Shielding | True |
| Shielding | Bezel EMI Finger |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.44 | |
| 10 | $ 3.89 | |||
| 25 | $ 3.79 | |||
| 66 | $ 3.71 | |||
| 132 | $ 3.59 | |||
1116062 Series
CONN MOD JACK 8P8C R/A SHIELDED
| Part | Number of Positions/Contacts | Number of Rows | Housing Material | Mounting Type | Contact Material | LED Color | Number of Ports | Shielding | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Orientation | Termination | Tab Direction | Contact Finish | Connector Type | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1116062-2 | 8p8c (RJ45, Ethernet) | 1 | Polyamide (PA), Nylon | Board Edge, Cutout, Through Hole | Phosphor Bronze | Does Not Contain LED | 1 | Bezel EMI Finger | 85 °C | -40 °C | Cat5 | 90 ° | Solder | Down | Gold | Jack | Board Guide | 50 µin | 1.27 µm |
Description
General part information
1116062 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, Bezel EMI Finger Cat5
Documents
Technical documentation and resources
No documents available
