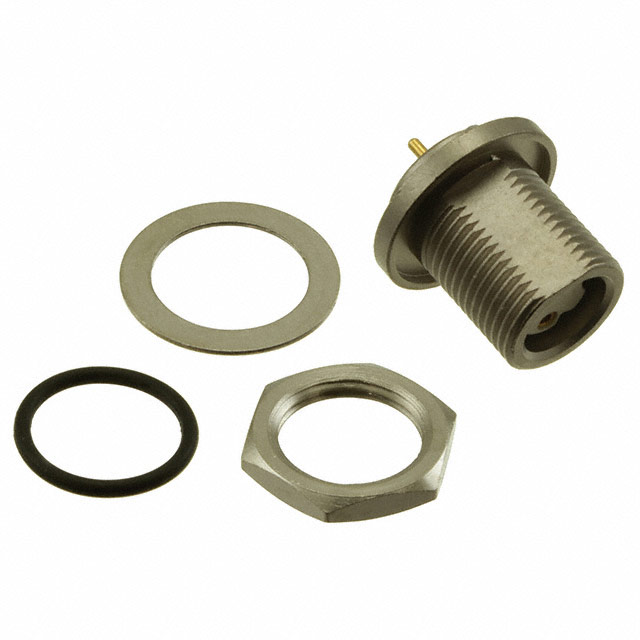

TS2P2F20-BPE

Active

Switchcraft Inc.

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Search across all available documentation for this part.

Active

Switchcraft Inc.

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TS2P2F20-BPE	TS2P2F Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	2	2
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Crimp, Solder Cup, Solder
Voltage Rating	125 VAC	125 VAC

CONN CIRCULAR SKT 2 POS SOLDER CUP ST PANEL MOUNT 2 TERMINAL 1 PORT BULK

Part	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Insert Material	Applications	Ingress Protection	Connector Type	Termination	Orientation	Shell Finish	Primary Material	Shell Material	Contact Material	Voltage Rating	Color	Number of Positions	Mounting Feature	Mounting Type
Switchcraft Inc. TS2P2F20	Shielded	135 °C	-40 °C	Gold	Liquid Crystal Polymer (LCP)	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	IP66, IP67, IP68	Receptacle, Female Sockets	Crimp, Solder Cup	Keyed	Electroless Nickel	Metal	Copper Alloy	Copper Alloy	125 VAC	Silver	2	Bulkhead - Rear Side Nut
Switchcraft Inc. TS2P2F20-BPE	Shielded	135 °C	-40 °C	Gold	Liquid Crystal Polymer (LCP)	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	IP66, IP67, IP68	Receptacle, Female Sockets	Solder	Keyed	Electroless Nickel	Metal	Copper Alloy	Copper Alloy	125 VAC	Silver	2	Bulkhead - Front Side Nut	Panel Mount, Through Hole
