PF2009 NA002

Active

ALPHA WIRE

SLEEVING 0.114" ID FBRGLASS 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.114" ID FBRGLASS 500'

Technical Specifications

Parameters and characteristics for this part

Specification	PF2009 NA002

Abrasion Protection	Abrasion Resistant, Fray Resistant
Color	Natural
Diameter - Inside [diameter]	2.9 mm
Diameter - Inside [diameter]	0.114 in
Diameter - Outside [diameter]	0.16 in
Diameter - Outside [diameter]	4.06 mm
Environment Protection	Corrosion Resistant
Features	Clean Cut
Length [x]	500 '
Length [x]	152.4 m
Material	Fiberglass, Silicone Coated
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness	0.018 in
Wall Thickness	0.46 mm

SLEEVING 0.114" ID FBRGLASS 500'

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Abrasion Protection	Type	Wall Thickness	Wall Thickness	Features	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Length [x]	Length [x]	Environment Protection	Type Attributes
ALPHA WIRE PF2009 NA002	200 °C	-70 °C	UL VW-1	Fiberglass, Silicone Coated	0.16 in	4.06 mm	Natural	Abrasion Resistant, Fray Resistant	Sleeving	0.018 in	0.46 mm	Clean Cut	2.9 mm	0.114 in	500 '	152.4 m	Corrosion Resistant	Braided

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 979.68

General part information

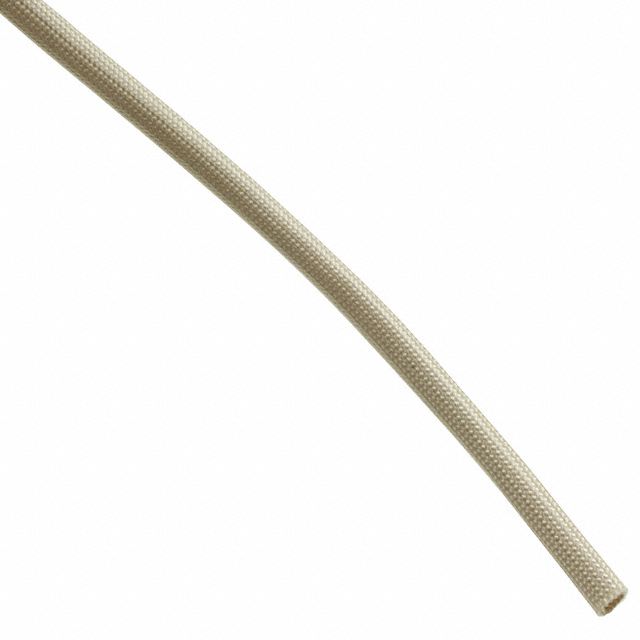

Natural Fiberglass, Silicone Coated Braided Sleeving 0.114" (2.90mm) 500' (152.40m)
