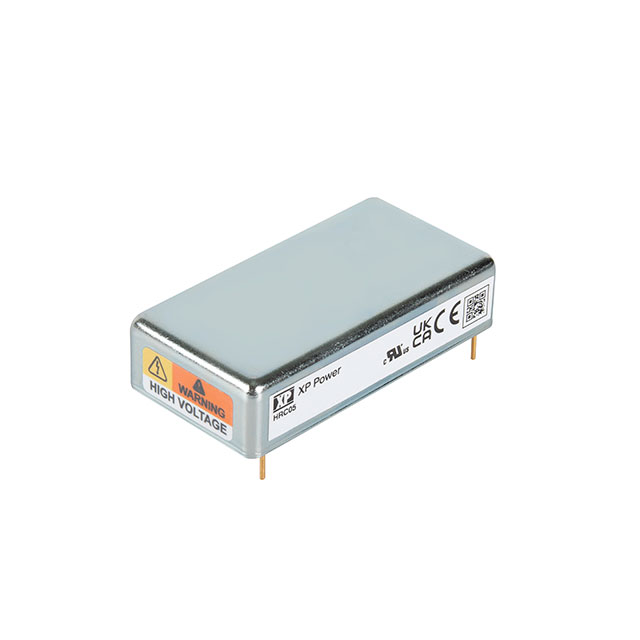

HRC0524S6K0N
ActiveXP POWER
HV DC-DC 5W 6000V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HRC0524S6K0N
ActiveXP POWER
HV DC-DC 5W 6000V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HRC0524S6K0N |
|---|---|
| Applications | ITE (Commercial), Laboratory |
| Approval Agency | UL |
| Current - Output (Max) [Max] | 830 µA |
| Features | Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-DIP Module |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 2.55 " |
| Size / Dimension [x] | 64.8 mm |
| Size / Dimension [y] | 1.3 in |
| Size / Dimension [y] | 33 mm |
| Size / Dimension [z] | 0.6 " |
| Size / Dimension [z] | 15.2 mm |
| Standard Number | 62368-1, 61010-1 |
| Type | High Voltage - Non-Isolated Module |
| Voltage - Input (Max) [Max] | 30 V |
| Voltage - Input (Min) [Min] | 22 V |
| Voltage - Output 1 [Max] | 0 V |
| Voltage - Output 1 [Min] | -6000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 457.20 | |
| 5 | $ 450.34 | |||
| 10 | $ 443.48 | |||
| 25 | $ 429.77 | |||
| 100 | $ 416.05 | |||
Description
General part information
HRC0524S6K0N
High Voltage - Non-Isolated Module DC DC Converter 1 Output 0 ~ -6000V 830µA 22V - 30V Input
