Technical Specifications
Parameters and characteristics for this part
| Specification | HDO4024A-MS |
|---|---|
| Bandwidth | 200 MHz |
| Channels [custom] | 16 |
| Channels [custom] | 4 |
| Display Type | LCD - Color (Touch) |
| Includes | Case, USB Adapter Cable |
| Input Impedance | 1 M, 12 pF |
| Interface | USB, Ethernet, GPIB |
| Memory Size | 12.5 Mpts |
| Probe Type | Passive 10:1 (4) |
| Rise Time (Typ) | 1.75 ns |
| Sampling Rate (Per Second) | 10 G |
| Type | Bench, Digital |
| Voltage - Input (Max) [Max] | 400 V |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information

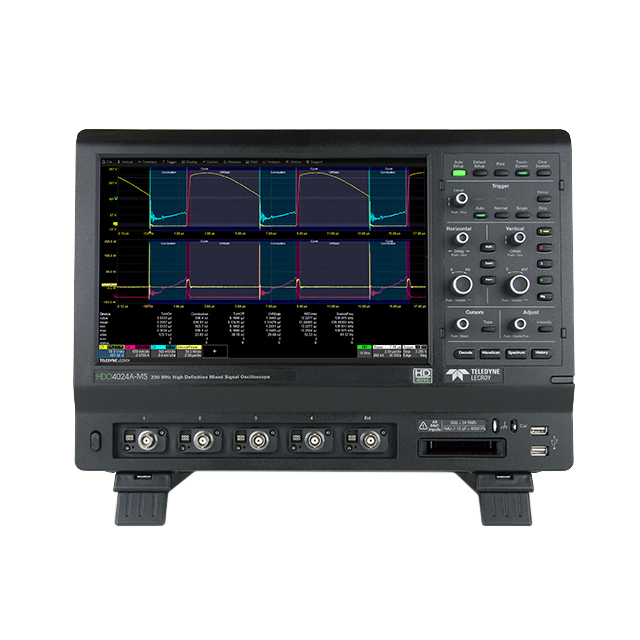

HDO4024A-MS
200 MHz Bench, Digital Oscilloscopes Ethernet, GPIB, USB Interface LCD - Color (Touch) Display 4 Analog, 16 Digital Channel 400V Record, Playback, Save, Trend
