130663
ActiveTE Connectivity AMP Connectors

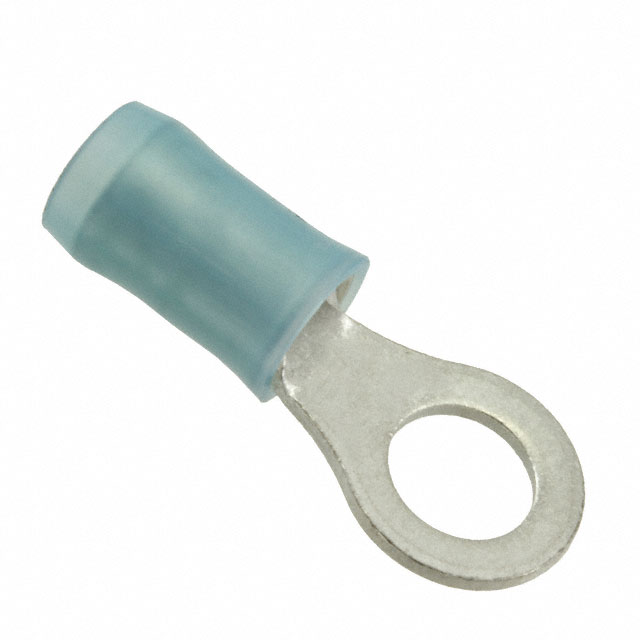

CONN RING CIRC 14-16AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
130663
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 14-16AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 130663 | 1036 Series |
|---|---|---|
| Color | Blue | Blue |
| Contact Finish | Tin | Tin |
| Contact Material | Copper | Copper |
| Features | Serrated Termination | Serrated Termination |
| Insulation | Insulated | Insulated |
| Insulation Diameter | - | 4.9 mm |
| Insulation Diameter | - | 3 mm |
| Insulation Diameter | - | 0.193 in |
| Insulation Diameter | - | 0.118 in |
| Insulation Diameter [Max] [diameter] | 0.15 " | 0.15 " |
| Insulation Diameter [Max] [diameter] | 3.81 mm | 3.81 mm |
| Insulation Diameter [Min] [diameter] | 2.59 mm | 2.59 mm |
| Insulation Diameter [Min] [diameter] | 0.102 in | 0.102 in |
| Length - Overall [x] | 0.843 " | 0.843 - 0.902 " |
| Length - Overall [x] | 21.4 mm | 21.4 - 22.91 mm |
| Length - Ring Center to Termination | - | 0.311 in |
| Length - Ring Center to Termination | - | 7.9 mm |
| Length - Termination | - | 9.8 mm |
| Length - Termination | - | 0.386 " |
| Material - Insulation | Nylon, Polyamide (PA) | Nylon, Polyamide (PA), Poly-Vinyl Chloride (PVC) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Terminal Type | Circular | Circular, Standard |
| Termination | Crimp | Crimp |
| Thickness | 0.031 in | 0.031 in |
| Thickness | 0.79 mm | 0.79 mm |
| Tongue Inside Opening | - | 0.205 in |
| Tongue Inside Opening | - | 5.21 mm |
| Width - Outer Edges [x] | 0.343 in | 0.343 - 0.394 in |
| Width - Outer Edges [x] | 8.71 mm | 8.71 - 10 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.71 | |
| 10 | $ 1.41 | |||
| 25 | $ 1.31 | |||
| 50 | $ 1.24 | |||
| 100 | $ 1.17 | |||
| 250 | $ 1.09 | |||
| 500 | $ 1.03 | |||
| 1000 | $ 0.97 | |||
| 2500 | $ 0.90 | |||
1036 Series
CONN RING CIRC 14-16AWG CRIMP
| Part | Features | Terminal Type | Width - Outer Edges [x] | Width - Outer Edges [x] | Insulation | Contact Finish | Mounting Type | Termination | Color | Contact Material | Thickness | Thickness | Length - Overall [x] | Length - Overall [x] | Material - Insulation | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Length - Termination [x] | Length - Termination [x] | Length - Ring Center to Termination | Length - Ring Center to Termination | Tongue Inside Opening [x] | Tongue Inside Opening [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 130663 | Serrated Termination | Circular | 0.343 in | 8.71 mm | Insulated | Tin | Free Hanging (In-Line) | Crimp | Blue | Copper | 0.031 in | 0.79 mm | 0.843 " | 21.4 mm | Nylon, Polyamide (PA) | 0.15 " | 3.81 mm | 2.59 mm | 0.102 in | ||||||||||
TE Connectivity AMP Connectors 130678 | Serrated Termination | Standard | 0.394 in | 10 mm | Insulated | Tin | Free Hanging (In-Line) | Crimp | Blue | Copper | 0.902 in | 22.91 mm | Poly-Vinyl Chloride (PVC) | 4.9 mm | 3 mm | 0.193 in | 0.118 in | 9.8 mm | 0.386 " | 0.311 in | 7.9 mm | 0.205 in | 5.21 mm |
Description
General part information
1036 Series
Ring Terminal Connector Circular 14-16 AWG Crimp
