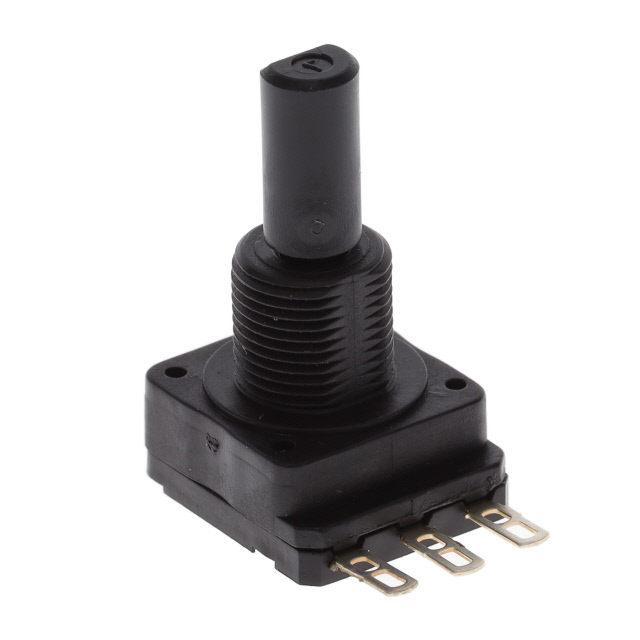

PC16SH-10CP16-105A2020-TA
ActiveAmphenol Piher Sensing Systems
POT 1M OHM 1/5W CARBON LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC16SH-10CP16-105A2020-TA
ActiveAmphenol Piher Sensing Systems
POT 1M OHM 1/5W CARBON LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC16SH-10CP16-105A2020-TA |
|---|---|
| Actuator Diameter [diameter] | 0.236 in |
| Actuator Diameter [diameter] | 6 mm |
| Actuator Length [z] | 21.5 mm |
| Actuator Length [z] | 0.846 in |
| Actuator Type | Flatted |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | M10 x 0.75 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.2 W |
| Power (Watts) | 1/5 |
| Resistance (Ohms) | 1M |
| Resistive Material | Carbon |
| Rotation | 300 ░ |
| Size - Body [x] | 18 mm |
| Size - Body [x] | 0.709 " |
| Size - Body [y] | 0.63 in |
| Size - Body [y] | 16 mm |
| Taper | Linear |
| Temperature Coefficient | 300 ppm/°C |
| Termination Style | Solder Lug |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.76 | |
| 10 | $ 3.02 | |||
| 25 | $ 2.77 | |||
| 50 | $ 2.59 | |||
| 100 | $ 2.42 | |||
| 250 | $ 2.21 | |||
| 500 | $ 2.07 | |||
| 1000 | $ 1.93 | |||
| 5000 | $ 1.65 | |||
Description
General part information
PC16SH-10CP16-105A2020-TA
1M Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Carbon 0.2W, 1/5W Solder Lug
