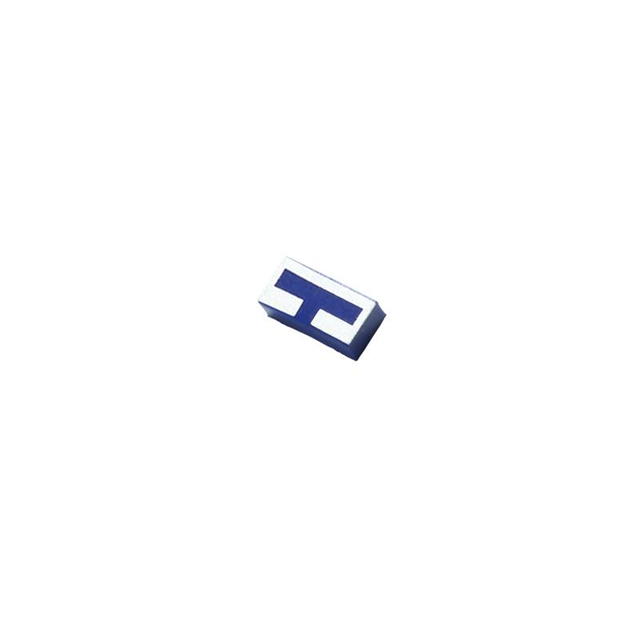

ANT3216LL11R2455A

Active

Pulse Electronics

ANTENNA CHIP 2.5/5G PIFA-C

Search across all available documentation for this part.

Active

Pulse Electronics

ANTENNA CHIP 2.5/5G PIFA-C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 4G, 5G, Bluetooth, ISM, Wi-Fi, Zigbee™ Chip Solder Surface Mount

Technical documentation and resources

Specification	ANT3216LL11R2455A	ANT3216 Series

Antenna Type	Chip	Chip
Applications	Bluetooth, 5G, Zigbee™, ISM, Wi-Fi, 4G	Wi-Fi, ISM, Bluetooth, 5G, Zigbee™, 4G, GPS
Frequency (Center/Band)	2.45 GHz, 5.5 GHz	1.575 - 5.5 GHz
Frequency Group	4 GHz	4 GHz
Frequency Group	-	UHF
Frequency Group [Max]	3 GHz	2 - 3 GHz
Frequency Group [Min]	2 GHz	1 - 2 GHz
Frequency Range	-	1600 MHz
Frequency Range	-	1550 MHz
Gain	0.64 dBi, 0.45 dBi	0.45 - 2.23 dBi
Height (Max)	-	0.55 mm
Height (Max) [Max]	0.047 in	0.022 - 0.047 in
Height (Max) [Max]	1.2 mm	1.2 mm
Mounting Type	Surface Mount	Surface Mount
Number of Bands	2	1 - 2
Power - Max [Max]	1 W	1 W
Return Loss	6.5 dB	-10 - 10 dB
RF Family/Standard	Bluetooth, Cellular, 802.15.4, General ISM, WiFi	Bluetooth, Cellular, 802.15.4, General ISM, WiFi, Navigation
Termination	Solder	Solder

Part	Mounting Type	Height (Max) [Max]	Height (Max)	Return Loss	Gain	Termination	Antenna Type	Power - Max [Max]	Number of Bands	Frequency (Center/Band)	Applications	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Height (Max) [Max]	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Frequency Group
Pulse Electronics ANT3216A063R2455A	Surface Mount	0.022 in	0.55 mm	10 dB	1.59 dBi, 2.23 dBi	Solder	Chip	1 W	2	2.45 GHz, 5.5 GHz	ISM, Wi-Fi	4 GHz	2 GHz	3 GHz
Pulse Electronics ANT3216LL11R2455A	Surface Mount	0.047 in		6.5 dB	0.45 dBi, 0.64 dBi	Solder	Chip	1 W	2	2.45 GHz, 5.5 GHz	4G, 5G, Bluetooth, ISM, Wi-Fi, Zigbee™	4 GHz	2 GHz	3 GHz	1.2 mm	802.15.4, Bluetooth, Cellular, General ISM, WiFi
Pulse Electronics ANT3216LL15R1575A	Surface Mount	0.047 in		-10 dB	2.01 dBi	Solder	Chip	1 W	1	1.575 GHz	GPS		1 GHz	2 GHz	1.2 mm	Navigation	1600 MHz	1550 MHz	UHF
