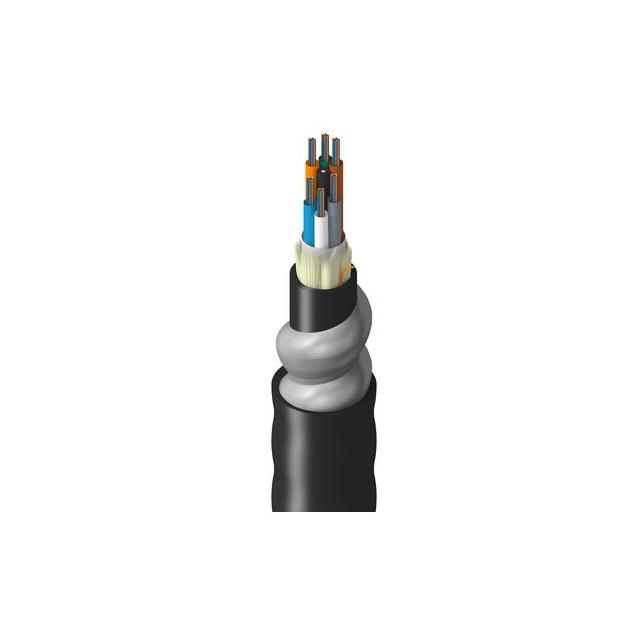

TU-SLG-072-RH2N
ActiveBelden Inc.
CBL FIBER OPTIC 125UM SINGLEMODE
TU-SLG-072-RH2N
ActiveBelden Inc.
CBL FIBER OPTIC 125UM SINGLEMODE
Description
General part information
TU-SLG-072-RH2N
Fiber Optic Cable Black Singlemode 125µm
Technical Specifications
Parameters and characteristics for this part
| Specification | TU-SLG-072-RH2N |
|---|---|
| Bend Radius | 227.33 mm |
| Cladding Diameter | 125 µm |
| Core Diameter | 8.2 µm |
| Jacket (Insulation) Diameter | 0.895 in |
| Jacket (Insulation) Material | Chlorinated Polyethylene (CPE) |
| Jacket Color | Black |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -50 °C |
| Style | Standard |
| Tensile Strength | 81.6 kg |
| Type | Singlemode |
