Specification	100007385

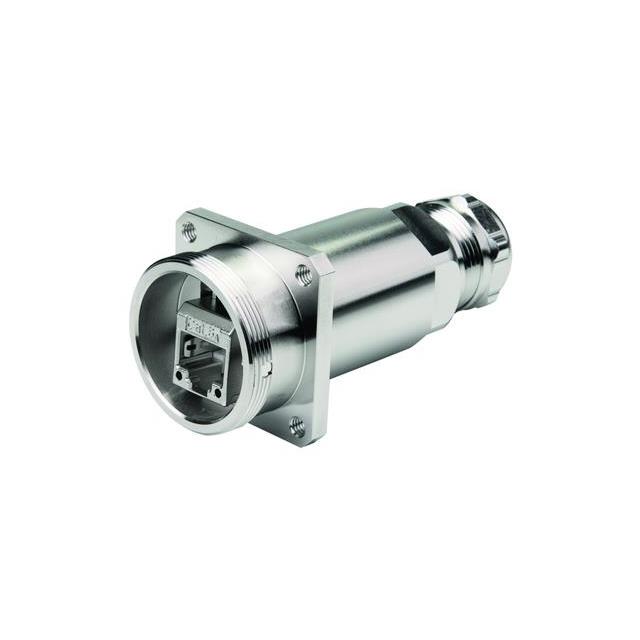

Connector Type	Jack, Ethernet, RJ45
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Phosphor Bronze
Housing Material	PC, Polycarbonate
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
LED Color	Does Not Contain LED
Mounting Type	Panel Mount, Flange
Number of Contacts	8
Number of Ports	1
Number of Positions	8
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	Straight
Ratings	Cat6a
Shielding	Shielded
Tab Direction	User Selectable
Termination	IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
