B78148E1333J000
ActiveEPCOS - TDK Electronics
FIXED IND 33UH 1.05A 550 MOHM TH
B78148E1333J000
ActiveEPCOS - TDK Electronics
FIXED IND 33UH 1.05A 550 MOHM TH
Description
General part information
B78148E1333J000

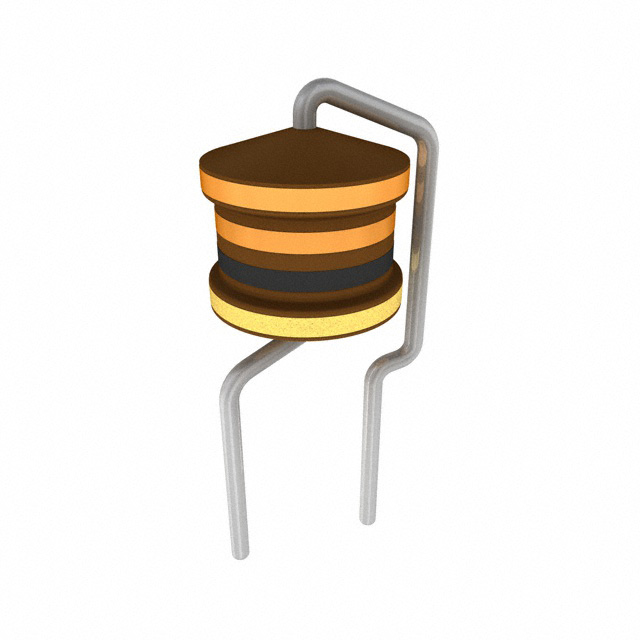

33 µH Unshielded Drum Core, Wirewound Inductor 1.05 A 550mOhm Max Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B78148E1333J000 |
|---|---|
| Current - Saturation (Isat) | 1 A |
| Current Rating | 1.05 A |
| DC Resistance (DCR) (Max) | 550 mOhm |
| Frequency - Self Resonant | 9 MHz |
| Height - Seated (Max) | 0.453 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Q | 50 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.157 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
