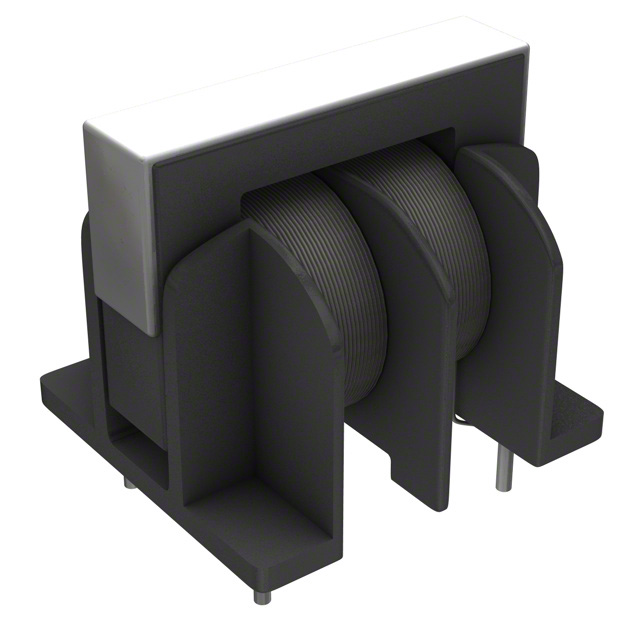

UF1815SG-650Y4R0-01
2 Line Common Mode Choke Through Hole 4A DCR 30mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | UF1815SG-650Y4R0-01 |
|---|---|
| Current Rating (Max) | 4 A |
| DC Resistance (DCR) (Max) | 30 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.61 in |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.709 in |
| Size / Dimension Width | 0.669 in |
