Y14880R00250D0R
ActiveVPG Foil Resistors
RES 0.0025 OHM 0.5% 3W 3637
Y14880R00250D0R
ActiveVPG Foil Resistors
RES 0.0025 OHM 0.5% 3W 3637
Description
General part information
Y14880R00250D0R

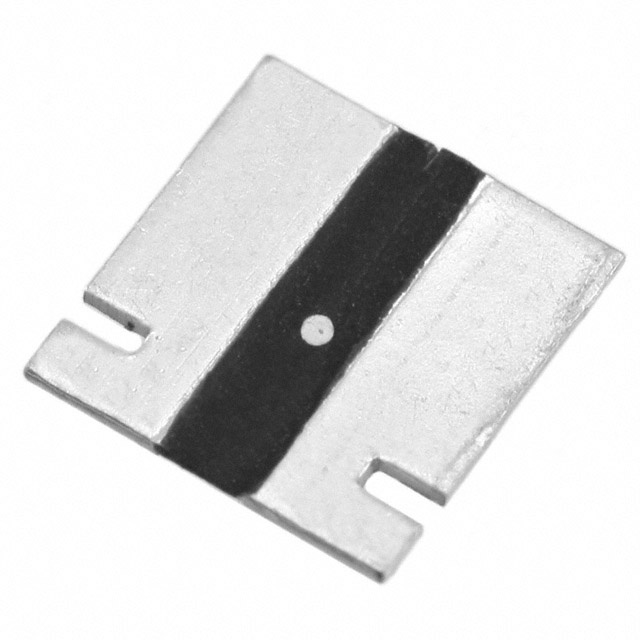

2.5 mOhms ±0.5% 3W Chip Resistor Nonstandard Current Sense, Moisture Resistant Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y14880R00250D0R |
|---|---|
| Composition | Metal Foil |
| Features | Moisture Resistant, Current Sense |
| Height - Seated (Max) | 0.035 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | Nonstandard |
| Package Name | 3637 |
| Power (Watts) | 3 W |
| Resistance | 2.5 mOhms |
| Size / Dimension Length | 0.36 in |
| Size / Dimension Width | 0.37 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.5 % |
