Description
General part information

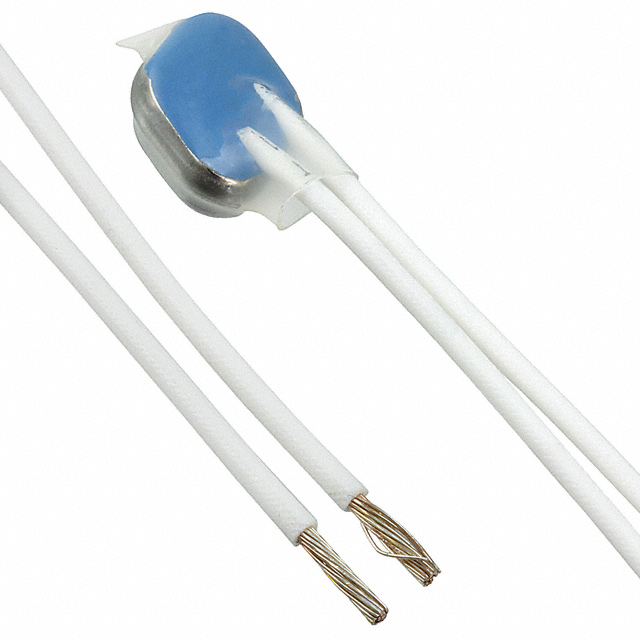

T22A12005DFFBG0E
Thermostat 248°F (120°C) SPST-NC Shrink Cap, Potted - Wire Leads Wire Leads - 4" (101.6mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | T22A12005DFFBG0E |
|---|---|
| Circuit | SPST-NC |
| Current Rating - AC | 20 A |
| Mounting Type | Through Hole |
| Package / Case | Shrink Cap, Potted - Wire Leads |
| Reset Temperature | 194 °F |
| Switching Cycles | 10 Kcycles |
| Switching Temperature | 120 °C |
| Termination Length | 4 in |
| Termination Style | Wire Leads |
| Tolerance | 9 °F |
