A72.259HYA.002F8
ActiveApacer Memory America
SATA MO-300 BICS5 PSLC 40GB
A72.259HYA.002F8
ActiveApacer Memory America
SATA MO-300 BICS5 PSLC 40GB
Description
General part information
A72.259HYA.002F8

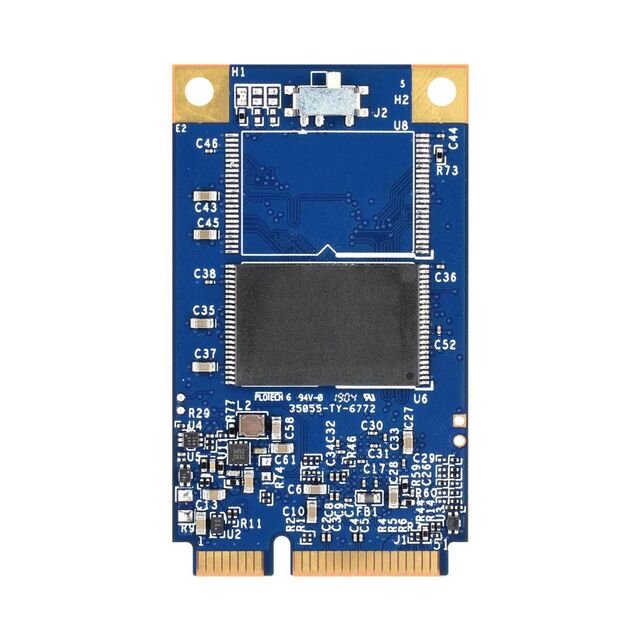

Solid State Drive (SSD) FLASH - NAND (TLC) 40GB SATA III mSATA 3.3V
Technical Specifications
Parameters and characteristics for this part
| Specification | A72.259HYA.002F8 |
|---|---|
| Current - Max | 360 mA |
| Form Factor | mSATA |
| Memory Size | 40 GB |
| Memory Type | Solid State Drive (SSD) FLASH - NAND (TLC) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Height | 4.85 mm |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 29.85 mm |
| Speed - Read | 550 MB/s |
| Speed - Write | 465 MB/s |
| Type | SATA III |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
