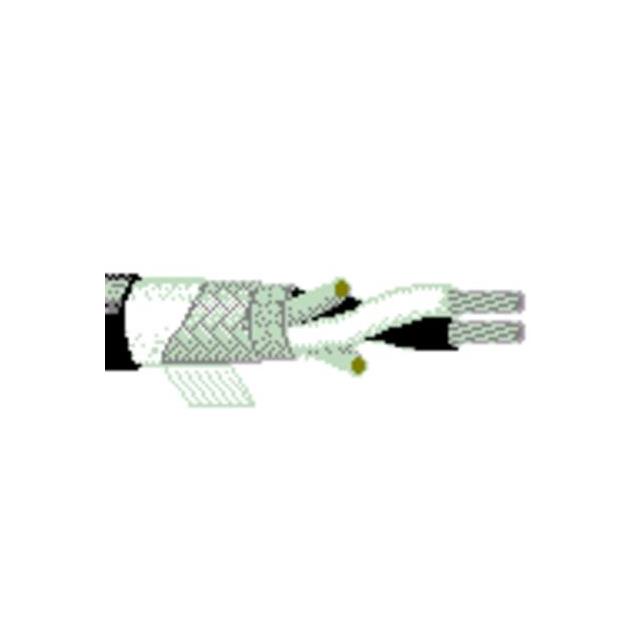

8428 010100

Active

Belden Inc.

2 #18 EPDM BRD CPE

Search across all available documentation for this part.

Active

Belden Inc.

2 #18 EPDM BRD CPE

Technical Specifications

Parameters and characteristics for this part

Specification	8428 010100

Cable Type	Microphone
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Jacket (Insulation) Material	Chlorinated Polyethylene (CPE)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Coverage	85 %
Shield Material	Viscose; Copper, Tinned
Shield Type	Double Braid
Usage	Audio
Voltage	600 V
Wire Gauge	18 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Shield Material	Jacket (Insulation) Material	Conductor Material	Length [x]	Length [x]	Shield Coverage	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Number of Conductors	Conductor Insulation	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Cable Type	Length	Length
Belden Inc. 8428 010U500	-30 ░C	60 °C	Double Braid	Viscose; Copper Tinned	Chlorinated Polyethylene (CPE)	Copper Tinned	500 '	152.4 m	85 %	Audio	0.762 mm	0.03 in	Black	2	Ethylene Propylene Terpolymer Rubber (EPDM)	600 V	41 strands	34 AWG	18 AWG	Microphone
Belden Inc. 8428 010100	-30 ░C	60 °C	Double Braid	Viscose; Copper Tinned	Chlorinated Polyethylene (CPE)	Copper Tinned	100 ft	30.5 m	85 %	Audio	0.762 mm	0.03 in	Black	2	Ethylene Propylene Terpolymer Rubber (EPDM)	600 V	41 strands	34 AWG	18 AWG	Microphone
Belden Inc. 8428 0101000	-30 ░C	60 °C	Double Braid	Viscose; Copper Tinned	Chlorinated Polyethylene (CPE)	Copper Tinned			85 %	Audio	0.762 mm	0.03 in	Black	2	Ethylene Propylene Terpolymer Rubber (EPDM)	600 V	41 strands	34 AWG	18 AWG	Microphone	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 6.11

General part information

2 Conductor Microphone Cable Black 18 AWG Double Braid 100.0' (30.5m)
