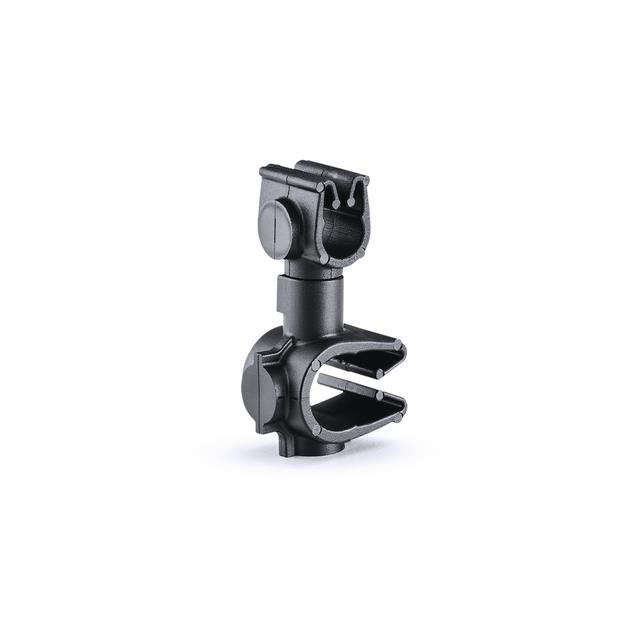

Specification	156-01996

Color	Black
Features	Impact Modified, Heat Stabilized, UV Stabilized
Height	0.6 in
Length	1.15 in
Material	Halogen Free, Nylon 6, 6, Polyamide (PA66)
Material Flammability Rating	UL94 HB
Opening Size (Max)	0.35 in
Opening Size (Min)	0.28 in
Type	Clip, C-Type
Type Attributes	Open

156-01 Series

Cable Ties T30R BRN TIE 5.8

Part	Features	Type	Height	Material Flammability Rating	Length	Color	Opening Size (Min)	Opening Size (Max)	Type Attributes	Material	Bundle Diameter	Mounting Type	Length - Approximate	Wire/Cable Tie Type	Length - Actual	Width	Tensile Strength
HELLERMANNTYTON 156-01869	Heat Stabilized Impact Modified UV Stabilized	C-Type Clip	1.29 in	UL94 HB	2.16 "	Black	0.67 in	0.86 in	Hinged Locking	6 Halogen Free Nylon 6 Polyamide (PA66)
HELLERMANNTYTON 156-01340	Heat Stabilized Impact Modified					Black				6 Nylon 6 Polyamide (PA66)	1.97 in	Swivel Clip Mount	8.25 in	Locking Standard	0.689 ft	0.185 in	50 lbs
HELLERMANNTYTON 156-01981	Heat Stabilized Impact Modified UV Stabilized	C-Type Clip	1.07 in	UL94 HB	1.96 in	Black	0.24 in	0.31 in	Open	6 Halogen Free Nylon 6 Polyamide (PA66)
HELLERMANNTYTON 156-01975	Heat Stabilized Impact Modified UV Stabilized	C-Type Clip	0.53 in	UL94 HB	1.27 in	Black	0.28 in	0.35 in	Open	6 Halogen Free Nylon 6 Polyamide (PA66)
HELLERMANNTYTON 156-01348	Heat Stabilized Impact Modified					Black				6 Nylon 6 Polyamide (PA66)	1.97 in	Swivel Clip Mount	8.25 in	Locking Standard	0.689 ft	0.185 in	50 lbs
HELLERMANNTYTON 156-01904	Heat Stabilized Impact Modified UV Stabilized	C-Type Clip	1.53 in	UL94 HB	2.01 in	Black	0.24 in	0.31 in	Hinged Locking	6 Halogen Free Nylon 6 Polyamide (PA66)
HELLERMANNTYTON 156-01932	Heat Stabilized Impact Modified UV Stabilized	C-Type Clip	0.9 in	UL94 HB	1.6 in	Black	0.16 in	0.22 in	Open	6 Halogen Free Nylon 6 Polyamide (PA66)
HELLERMANNTYTON 156-01972	Heat Stabilized Impact Modified UV Stabilized	C-Type Clip	0.53 in	UL94 HB	1.1 in	Black	0.24 in	0.31 in	Open	6 Halogen Free Nylon 6 Polyamide (PA66)
HELLERMANNTYTON 156-01159
HELLERMANNTYTON 156-01867	Heat Stabilized Impact Modified UV Stabilized	C-Type Clip	1.08 in	UL94 HB	2.02 in	Black	0.55 in	0.72 in	Hinged Locking	6 Halogen Free Nylon 6 Polyamide (PA66)
