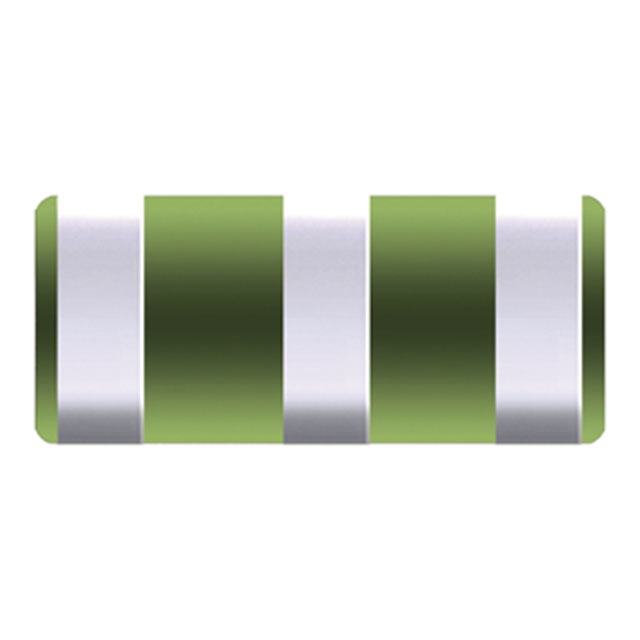

AWSCR-6.00CP-T
ActiveAbracon LLC
CERAMIC RES 6.0000MHZ 30PF SMD
AWSCR-6.00CP-T
ActiveAbracon LLC
CERAMIC RES 6.0000MHZ 30PF SMD
Description
General part information
AWSCR-6.00CP-T
6 MHz Ceramic Resonator Built in Capacitor 30 pF ±0.3% 30 Ohms -25°C ~ 85°C Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | AWSCR-6.00CP-T |
|---|---|
| Capacitance | 30 pF |
| Features | Built in Capacitor |
| Frequency | 6 MHz |
| Frequency Stability | 0.3 % |
| Frequency Tolerance | 0.5 % |
| Height | 0.071 in |
| Impedance | 30 Ohm |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 3-SMD, Non-Standard |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.118 in |
| Type | Ceramic |
