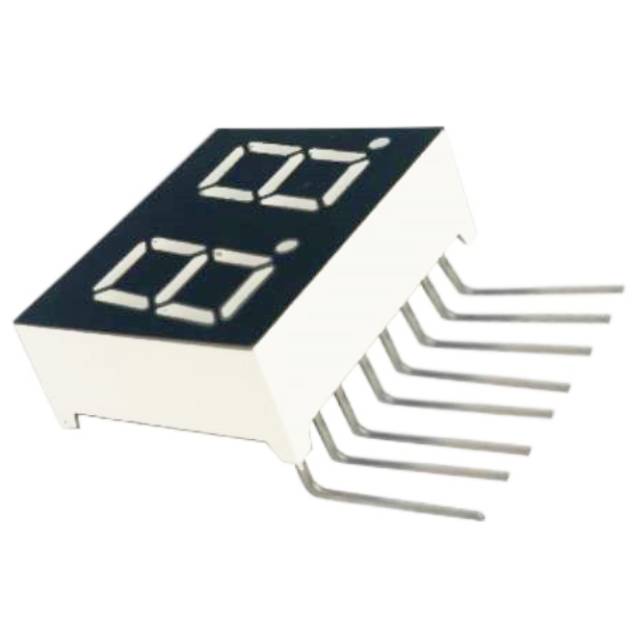

A402SR-10.7LF

Active

American Opto Plus LED

TH DISP 14SEG 0.4 DUAL RED 8DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A402SR-10.7LF

Active

American Opto Plus LED

TH DISP 14SEG 0.4 DUAL RED 8DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A402SR-10.7LF

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.4 in
Digit/Alpha Size	10.21 mm
Display Type	7-Segment
Millicandela Rating	4.2 mcd
Number of Characters	2
Package / Case	8-DIP
Size / Dimension [x]	0.626 in
Size / Dimension [x]	15.9 mm
Size / Dimension [y]	20.1 mm
Size / Dimension [y]	0.791 in
Size / Dimension [z]	0.276 in
Size / Dimension [z]	7 mm
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Peak	660 nm

A402 Series

TH DISP 14SEG 0.4 DUAL RED 8DIP

Part	Common Pin	Package / Case	Current - Test	Color	Voltage - Forward (Vf) (Typ)	Display Type	Millicandela Rating	Number of Characters	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Wavelength - Peak
American Opto Plus LED A402SR-10.7LF	Common Anode	8-DIP	20 mA	Red	1.85 V	7-Segment	4.2 mcd	2	0.4 in	10.21 mm	0.626 in	0.276 in	20.1 mm	15.9 mm	0.791 in	7 mm	660 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.56
		10	$ 2.22
		100	$ 1.78
		500	$ 1.11
		1000	$ 0.89

Description

General part information

A402 Series

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 1.85V 20mA 0.626" H x 0.791" W x 0.276" D (15.90mm x 20.10mm x 7.00mm) 8-DIP
