4401-000LF
ActiveTusonix a Subsidiary of CTS Electronic Components
CAP FEEDTHRU 200V AXIAL
4401-000LF
ActiveTusonix a Subsidiary of CTS Electronic Components
CAP FEEDTHRU 200V AXIAL
Description
General part information
4401-000LF

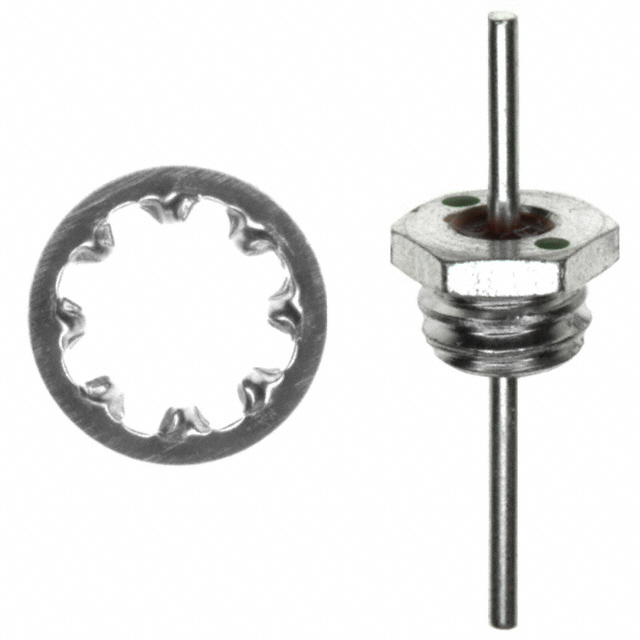

Feed Through Capacitor 200V 10 A Axial, Bushing
Technical Specifications
Parameters and characteristics for this part
| Specification | 4401-000LF |
|---|---|
| Current | 10 A |
| Insertion Loss | 3 dB |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Bushing, Axial |
| Size / Dimension Diameter | 0.187 in |
| Size / Dimension Length | 0.13 in |
| Thread Size (Max) | 36 mm |
| Thread Size (Min) | 8 mm |
| Type | Feed Through |
| Voltage - Rated | 200 VDC |
