XW4H-04A1

Active

Omron Electronics Inc-EMC Div

TERM BLOCK PLUG 4POS 2.54MM

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

TERM BLOCK PLUG 4POS 2.54MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

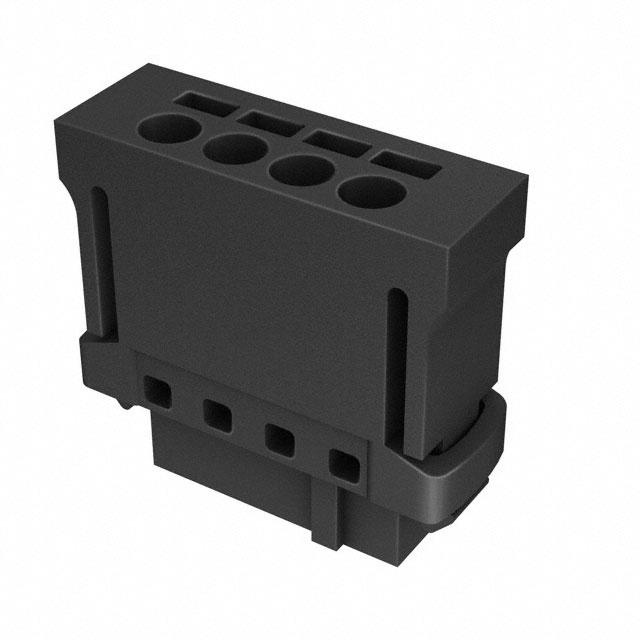

4 Position Terminal Block Plug, Female Sockets 0.100" (2.54mm) 180° Free Hanging (In-Line)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	XW4H-04A1	XW4H Series

Color	Black	Black
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	6 A	6 A
Features	Latch Lock	Latch Lock
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height	4.9 mm	4.9 mm
Insulation Height	0.193 in	0.193 in
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	4	4 - 10
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-45 °C	-45 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Positions Per Level	4	4 - 10
Termination Style	Push-In Spring, Screwless - Leg Spring	Push-In Spring, Screwless - Leg Spring
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	160 V	160 V
Wire Gauge or Range - AWG [Max]	26 AWG	26 AWG
Wire Gauge or Range - AWG [Min]	20 AWG	20 AWG
Wire Gauge or Range - mm² [Max]	0.5 mm²	0.5 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²	0.14 mm²
Wire Strip Length	6 mm	6 mm

TERM BLOCK PLUG 4POS 2.54MM

Part	Positions Per Level	Features	Housing Material	Voltage - UL	Mounting Type	Wire Strip Length	Insulation Height	Insulation Height	Termination Style	Pitch [x]	Pitch [x]	Number of Levels	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Positions	Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Material	Contact Mating Finish	Current - UL
Omron Electronics Inc-EMC Div XW4H-04A1	4	Latch Lock	Liquid Crystal Polymer (LCP), Glass Filled	160 V	Free Hanging (In-Line)	6 mm	4.9 mm	0.193 in	Push-In Spring, Screwless - Leg Spring	2.54 mm	0.1 in	1	0.5 mm²	0.14 mm²	4	Plug, Female Sockets	Black	125 °C	-45 °C	26 AWG	20 AWG	Copper Alloy	Tin	6 A
