Description
General part information
203132

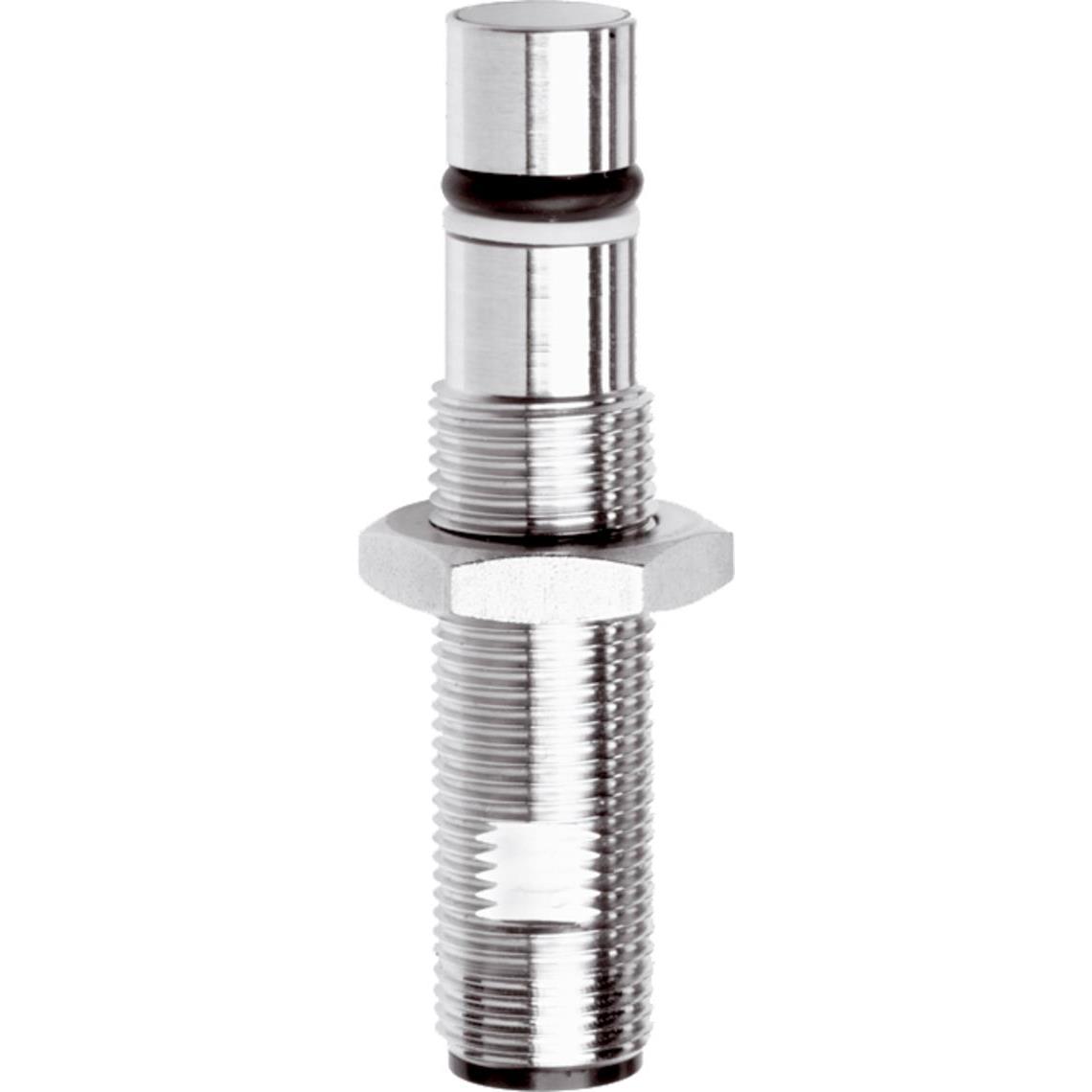

SENSOR PROX INDUCTIVE 1.5MM CYL
Technical Specifications
Parameters and characteristics for this part
| Specification | 203132 |
|---|---|
| Indicator | No Indicator |
| Ingress Protection | IP68 |
| Material - Body | Stainless Steel, ZrO2 Ceramic |
| Operating Temperature (Max) | 80 °C, 80 °C |
| Operating Temperature (Min) | -25 °C, -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Threaded - M12, Cylinder |
| Response Frequency | 600 Hz |
| Sensing Distance | 0.059 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
