Specification	ERF8-013-09.0-S-DV-L-TR

Connector Type	Outer Shroud Contacts, Socket
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Board Guide, Latches
Height Above Board	0.358 in
Mated Stacking Height Options	17mm, 14mm, 24mm, 11mm, 18mm
Mounting Type	Surface Mount
Number of Positions	26
Number of Rows	2
Pitch	0.031 in

ERF8 Series

...

Part	Number of Rows	Contact Finish	Mounting Type	Pitch	Height Above Board	Features	Number of Positions	Mated Stacking Height Options	Connector Type	Contact Finish Thickness
Samtec Inc. ERF8-025-07.0-S-DV-L-TR	2	Gold	Surface Mount	0.031 in	0.285 in	Board Guide Latches	50	12mm 15mm 16mm 22mm 9mm	Outer Shroud Contacts Socket	30 µin
Samtec Inc. ERF8-020-09.0-L-DV-L-TR	2	Gold	Surface Mount	0.031 in	0.358 in	Board Guide Latches	40	11mm 14mm 17mm 18mm 24mm	Outer Shroud Contacts Socket	10 Ąin

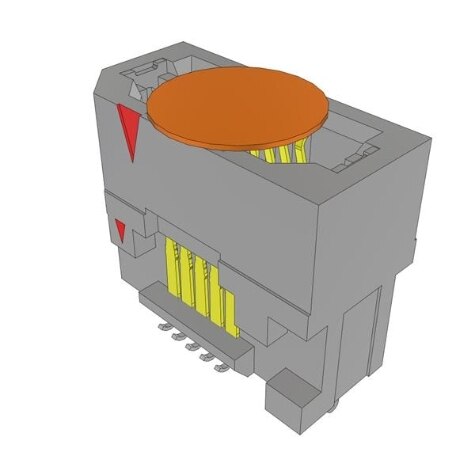

Samtec Inc. ERF8-013-09.0-L-DV-TR	2	Gold	Surface Mount	0.031 in	0.358 in	Board Guide	26	11mm 14mm 17mm 18mm 24mm	Outer Shroud Contacts Socket	10 Ąin
Samtec Inc. ERF8-070-09.0-L-DV-K-TR	2	Gold	Surface Mount	0.031 in	0.358 in	Board Guide Pick and Place	140	11mm 14mm 17mm 18mm 24mm	Outer Shroud Contacts Socket	10 Ąin
Samtec Inc. ERF8-005-09.0-L-DV-K-TR	2	Gold	Surface Mount	0.031 in	0.358 in	Board Guide Pick and Place	10	11mm 14mm 17mm 18mm 24mm	Outer Shroud Contacts Socket	10 Ąin
Samtec Inc. ERF8-035-07.0-S-DV-K-TR	2	Gold	Surface Mount	0.031 in	0.285 in	Board Guide Pick and Place	70	12mm 15mm 16mm 22mm 9mm	Outer Shroud Contacts Socket	30 µin
Samtec Inc. ERF8-010-09.0-L-DV-K-TR	2	Gold	Surface Mount	0.031 in	0.358 in	Board Guide Pick and Place	20	11mm 14mm 17mm 18mm 24mm	Outer Shroud Contacts Socket	10 Ąin

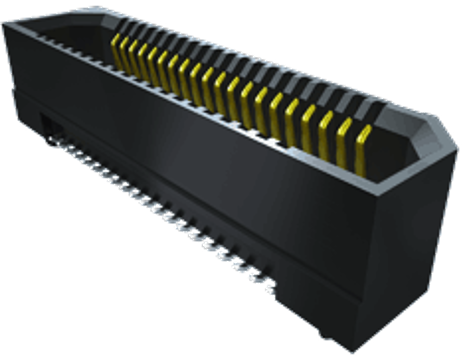

Samtec Inc. ERF8-040-01-L-D-RA-EGP-TR	2	Gold	Right Angle Surface Mount	0.031 in	0.246 in	Board Guide Mounting Flange	80		Outer Shroud Contacts Socket	10 Ąin
Samtec Inc. ERF8-025-05.0-L-DV-S-TR	2	Gold	Surface Mount	0.031 in	0.21 in	Board Guide Shielded	50	10mm 13mm 14mm 20mm 7mm	Outer Shroud Contacts Socket	10 Ąin
Samtec Inc. ERF8-040-09.0-L-DV-TR	2	Gold	Surface Mount	0.031 in	0.358 in	Board Guide	80	11mm 14mm 17mm 18mm 24mm	Outer Shroud Contacts Socket	10 Ąin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

ERF8-013-09.0-S-DV-L-TR | Datasheet
