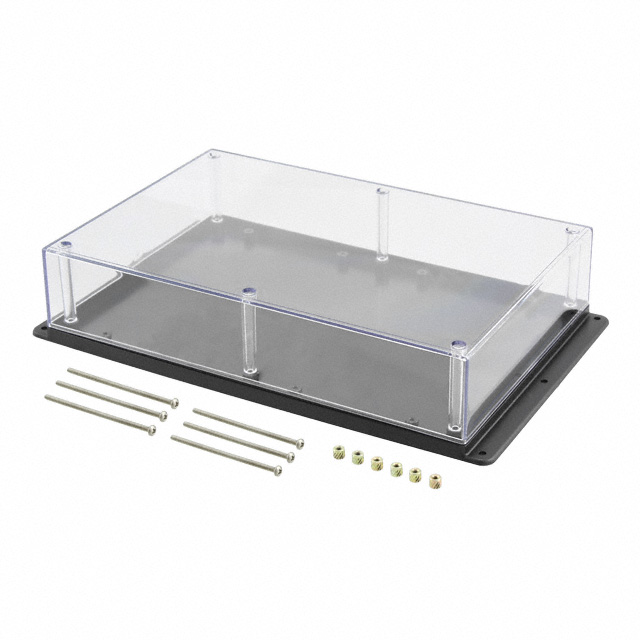

WM093RC,BK

Active

Serpac

BOX PLAS /CLR 9.500"L X 6.34"W

Deep-Dive with AI

Search across all available documentation for this part.

WM093RC,BK

Active

Serpac

BOX PLAS /CLR 9.500"L X 6.34"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM093RC,BK

Area (L x W)	388 cm²
Area (L x W)	60.2 in²
Color	Black, Clear Cover/Door
Container Type	Box
Design	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access
Height [z]	2.1 in
Height [z]	53.34 mm
Material	Plastic, Polycarbonate
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	309.35 g
Weight	0.682 lb

WM093 Series

Part	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Weight	Weight	Features	Color	Design	Material Flammability Rating	Height [z]	Height [z]	Material	Container Type	Thickness	Thickness	Area (L x W)	Area (L x W)
Serpac WM093I,BK	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	309.35 g	0.682 lb	Mounting Flange PCB Supports Wall Mount	Black	Cover Included	UL94 HB	2.1 in	53.34 mm	Plastic ABS	Box	2.54 mm	0.1 in	388 cm²	60.2 in²
Serpac WM093C,AL	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	309.35 g	0.682 lb	Mounting Flange PCB Supports Wall Mount		Cover Included		2.1 in	53.34 mm	Plastic Polycarbonate	Box	2.54 mm	0.1 in	388 cm²	60.2 in²
Serpac WM093I,GY	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	309.35 g	0.682 lb	Mounting Flange PCB Supports Wall Mount	Gray	Cover Included	UL94 HB	2.1 in	53.34 mm	Plastic ABS	Box	2.54 mm	0.1 in	388 cm²	60.2 in²
Serpac WM093R,BK	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	309.35 g	0.682 lb	Front Access Mounting Flange PCB Supports Wall Mount	Black	Cover Included	UL94 HB	2.1 in	53.34 mm	Plastic ABS	Box	2.54 mm	0.1 in	388 cm²	60.2 in²
Serpac WM093RC,GY	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	309.35 g	0.682 lb	Front Access Mounting Flange PCB Supports Wall Mount	Clear Cover/Door Gray	Cover Included		2.1 in	53.34 mm	Plastic Polycarbonate	Box	2.54 mm	0.1 in	388 cm²	60.2 in²
Serpac WM093R,AL	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	309.35 g	0.682 lb	Front Access Mounting Flange PCB Supports Wall Mount	Almond	Cover Included	UL94 HB	2.1 in	53.34 mm	Plastic ABS	Box	2.54 mm	0.1 in	388 cm²	60.2 in²
Serpac WM093RC,BK	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	309.35 g	0.682 lb	Front Access Mounting Flange PCB Supports Wall Mount	Black Clear Cover/Door	Cover Included		2.1 in	53.34 mm	Plastic Polycarbonate	Box	2.54 mm	0.1 in	388 cm²	60.2 in²
Serpac WM093C,GY	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	309.35 g	0.682 lb	Mounting Flange PCB Supports Wall Mount	Clear Cover/Door Gray	Cover Included		2.1 in	53.34 mm	Plastic Polycarbonate	Box	2.54 mm	0.1 in	388 cm²	60.2 in²
Serpac WM093,GY	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	309.35 g	0.682 lb	Mounting Flange PCB Supports Wall Mount	Gray	Cover Included	UL94 HB	2.1 in	53.34 mm	Plastic ABS	Box	2.54 mm	0.1 in	388 cm²	60.2 in²
Serpac WM093RI,BK	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	309.35 g	0.682 lb	Front Access Mounting Flange PCB Supports Wall Mount	Black	Cover Included	UL94 HB	2.1 in	53.34 mm	Plastic ABS	Box	2.54 mm	0.1 in	388 cm²	60.2 in²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.44
		5	$ 19.64
		10	$ 18.81
		25	$ 18.21
		50	$ 17.96
		100	$ 17.82
		250	$ 17.71
		500	$ 17.67

Description

General part information

WM093 Series

Box Plastic, Polycarbonate Black, Clear Cover/Door Cover Included 9.500" L x 6.340" W (241.30mm x 161.04mm) X 2.100" (53.34mm)

Documents

Technical documentation and resources

No documents available
