Description
General part information
PE4392

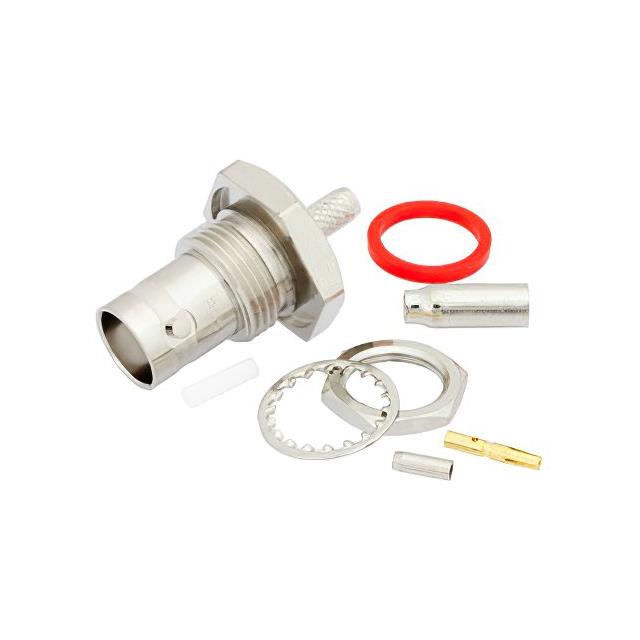

BNC Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4392 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 316DS, RG-188DS |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Crimp |
