Technical Specifications
Parameters and characteristics for this part
| Specification | 1010501 |
|---|---|
| Applications | Industrial, Laboratory, Medical, ITE (Commercial) |
| Approval Agency | TUV, cURus, CE, UKCA |
| Current - Output 1 | 15 A |
| Current - Output 2 | 8 A |
| Current - Output 3 | 2 A |
| Current - Output 4 | 2 A |
| Features | Remote Sense, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 6 in |
| Size / Dimension [x] | 152.4 mm |
| Size / Dimension [y] | 3.83 in |
| Size / Dimension [y] | 97.3 mm |
| Size / Dimension [z] | 1.32 in |
| Size / Dimension [z] | 33.5 mm |
| Standard Number | 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Output 1 | 3.3 V |
| Voltage - Output 2 | 5 V |
| Voltage - Output 3 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 212.64 | |
| 25 | $ 197.91 | |||
| 100 | $ 192.12 | |||
Description
General part information
1010501

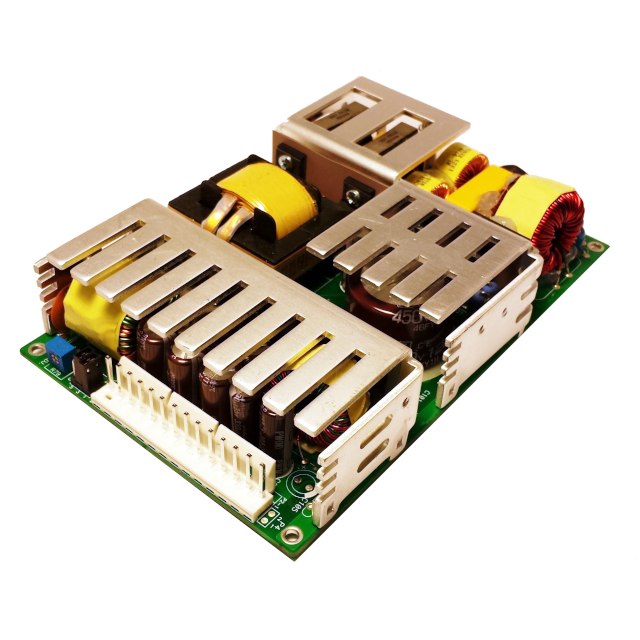

Open Frame AC DC Converters 4 Output 3.3V 5V 12V -12V 85 ~ 264 VAC Input
