1-1102328-6
ActiveTE Connectivity AMP Connectors

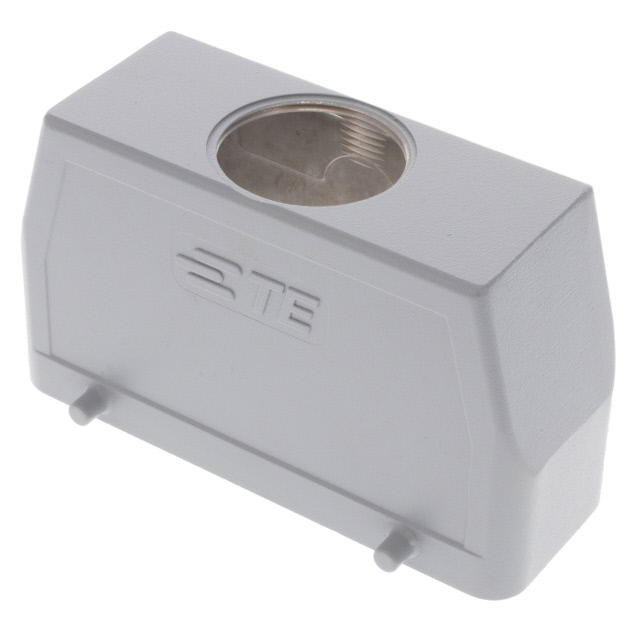

CONN HOOD TOP ENTRY SZ8 PG29
Deep-Dive with AI
Search across all available documentation for this part.
1-1102328-6
ActiveTE Connectivity AMP Connectors
CONN HOOD TOP ENTRY SZ8 PG29
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1102328-6 | 1102328 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray, Black |
| Housing Finish | Powder Coated | Powder Coated, Aluminum Oxide |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom |
| Size | 8 | 8 |
| Size / Dimension [x] | 4.724 " | 4.724 " |
| Size / Dimension [x] | 120 mm | 120 mm |
| Size / Dimension [y] | 1.693 in | 1.693 in |
| Size / Dimension [y] | 43 mm | 43 mm |
| Size / Dimension [z] | 70 mm | 70 mm |
| Size / Dimension [z] | 2.756 in | 2.756 in |
| Style | Top Entry | Top Entry |
| Thread Size | PG29 | PG29 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1102328 Series
CONN HOOD TOP ENTRY SZ8 PG29
| Part | Thread Size | Housing Material | Housing Finish | Lock Location | Connector Type | Housing Color | Style | Ingress Protection | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1102328-6 | PG29 | Aluminum Alloy, Die Cast | Powder Coated | Locking Clip (2) on Base Bottom | Hood | Gray | Top Entry | IP65 - Dust Tight, Water Resistant | 4.724 " | 120 mm | 70 mm | 1.693 in | 43 mm | 2.756 in | 8 |
TE Connectivity AMP Connectors 2-1102328-6 | PG29 | Aluminum Alloy, Die Cast | Aluminum Oxide | Locking Clip (2) on Base Bottom | Hood | Black | Top Entry | IP65 - Dust Tight, Water Resistant | 4.724 " | 120 mm | 70 mm | 1.693 in | 43 mm | 2.756 in | 8 |
Description
General part information
1102328 Series
Hood Connector Top Entry PG29 8 IP65 - Dust Tight, Water Resistant
