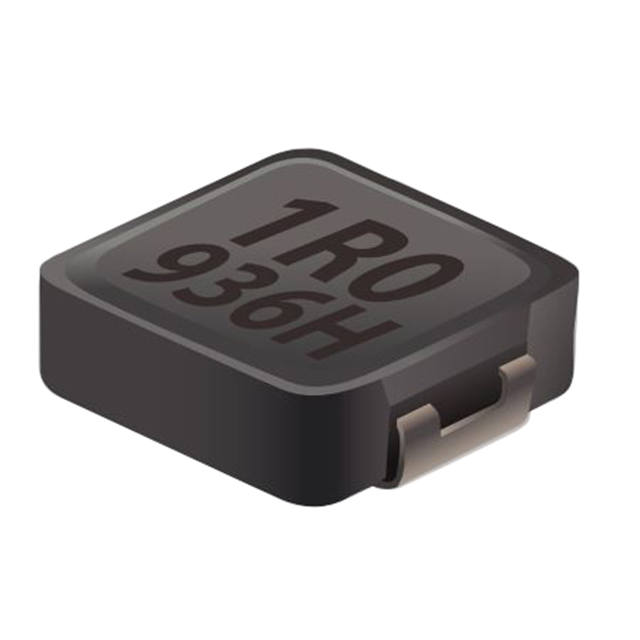

SRP5030C-1R0M
ObsoleteBourns Inc.
FIXED IND 1UH 10A 14 MOHM SMD
SRP5030C-1R0M
ObsoleteBourns Inc.
FIXED IND 1UH 10A 14 MOHM SMD
Description
General part information
SRP5030C-1R0M
1 µH Shielded Inductor 10 A 14mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP5030C-1R0M |
|---|---|
| Current - Saturation (Isat) | 12 A |
| Current Rating | 10 A |
| DC Resistance (DCR) (Max) | 14 mOhm |
| Frequency - Self Resonant | 43 MHz |
| Height - Seated (Max) | 0.118 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Q | 20 |
| Shielding | Shielded |
| Size / Dimension Length | 0.224 in |
| Size / Dimension Width | 0.205 in |
| Tolerance | 20 % |
