114-83-424-41-117101

Active

Preci-Dip

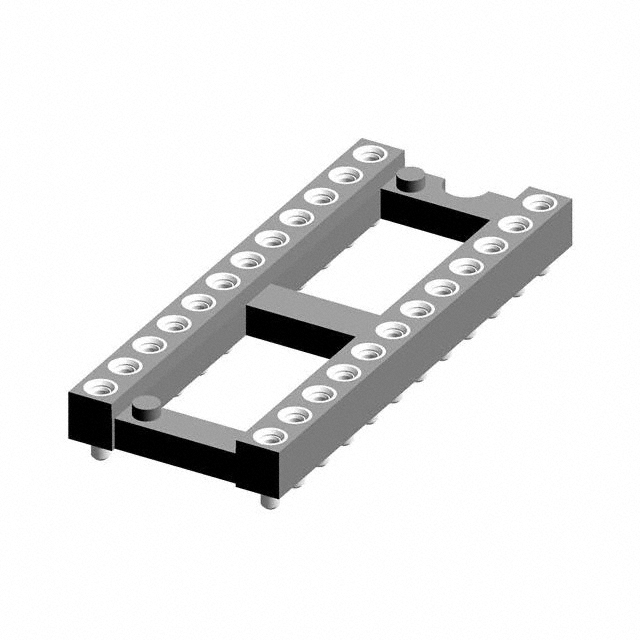

CONN IC DIP SOCKET 24POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

114-83-424-41-117101

Active

Preci-Dip

CONN IC DIP SOCKET 24POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1530	$ 1.63

Description

General part information

114-83 Series

24 (2 x 12) Pos DIP, 0.4" (10.16mm) Row Spacing Socket Gold Surface Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	114-83-424-41-117101	114-83 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	29.5 Áin	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám	0.75 Ám
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Features	Open Frame	Open Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions or Pins (Grid)	24	14 - 48
Number of Positions or Pins (Grid)	-	2
Number of Positions or Pins (Grid)	-	6
Number of Positions or Pins (Grid)	-	3 - 20
Number of Positions or Pins (Grid)	-	2 x 16, 2 x 5
Number of Positions or Pins (Grid)	-	32
Number of Positions or Pins (Grid)	-	10
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	1.2 mm	1.2 mm
Termination Post Length [x]	0.047 in	0.047 in
Type	0.4 in	0.2 - 0.6 "
Type	10.16 mm	5.08 - 15.24 mm
Type	DIP	DIP

114-83 Series

CONN IC DIP SOCKET 24POS GOLD

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Housing Material	Contact Finish - Post	Mounting Type	Pitch - Post	Pitch - Post	Termination Post Length	Termination Post Length [x]	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Termination	Features	Contact Finish - Mating	Material Flammability Rating	Contact Material - Mating	Contact Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Post [custom]	Number of Positions or Pins (Grid)	Type	Type	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Preci-Dip 114-83-324-41-117101	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass	24	0.3 "	7.62 mm	DIP
Preci-Dip 114-83-306-41-134161	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass		0.3 "	7.62 mm	DIP	2	6	3
Preci-Dip 114-83-632-41-134161	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass		0.6 in	15.24 mm	DIP				2 x 16	32
Preci-Dip 114-83-210-41-117101	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass		0.2 in	5.08 mm	DIP				2 x 5		10
Preci-Dip 114-83-310-41-134191	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass		0.3 "	7.62 mm	DIP				2 x 5		10
Preci-Dip 114-83-316-41-117101	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass	16	0.3 "	7.62 mm	DIP
Preci-Dip 114-83-624-41-117101	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass	24	0.6 in	15.24 mm	DIP
Preci-Dip 114-83-328-41-134161	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass	28	0.3 "	7.62 mm	DIP
Preci-Dip 114-83-320-41-134161	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass	20	0.3 "	7.62 mm	DIP
Preci-Dip 114-83-640-41-134161	29.5 Áin	0.75 Ám	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Tin	Surface Mount	2.54 mm	0.1 in	1.2 mm	0.047 in	1 A	0.1 in	2.54 mm	Solder	Open Frame	Gold	UL94 V-0	Beryllium Copper	10 mOhm	-55 °C	125 °C	Brass	40	0.6 in	15.24 mm	DIP	2		20
