ActiveEDAC Inc.

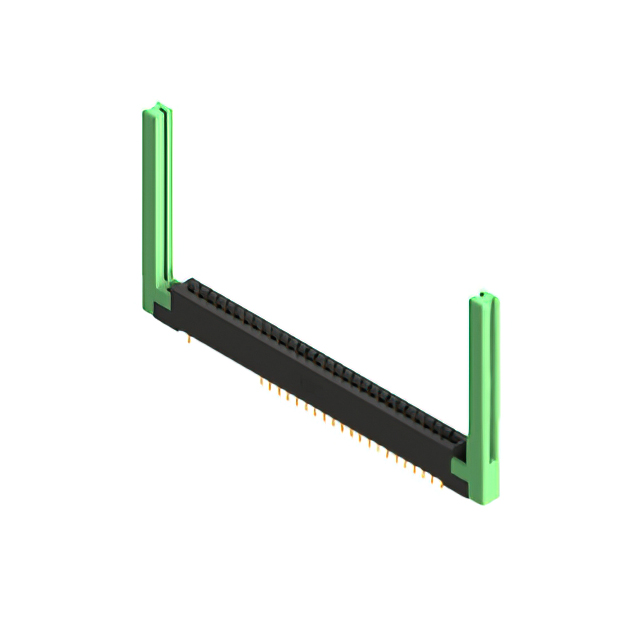

CONN EDGE DUAL FMALE 58POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-058-540-258
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 58POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-058-540-258 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 58 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
387-058 Series
...
| Part | Pitch [x] | Pitch [x] | Features | Contact Type | Contact Material | Card Type | Number of Rows | Mounting Type | Gender | Material - Insulation | Color | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Contact Finish | Number of Positions/Bay/Row | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | Card Extender | Cantilever | Copper Alloy | Non Specified - Dual Edge | 2 | Board Edge Straddle Mount | Female | Polyester Thermoplastic | Black | 10 Áin | 0.25 Ám | 58 | Dual | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Gold | 29 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||
EDAC Inc. | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 2 | Board Edge Straddle Mount | Female | Polyester Thermoplastic | Black | 10 Áin | 0.25 Ám | 58 | Dual | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Gold | 29 | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 2 | Through Hole Right Angle | Female | Polyester Thermoplastic | Black | 10 Áin | 0.25 Ám | 58 | Dual | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Gold | 29 | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 2 | Through Hole | Female | Polyester Thermoplastic | Black | 10 Áin | 0.25 Ám | 58 | Dual | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Gold | 29 | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 2 | Through Hole | Female | Polyester Thermoplastic | Black | 10 Áin | 0.25 Ám | 58 | Dual | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Gold | 29 | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 2 | Through Hole | Female | Polyester Thermoplastic | Black | 10 Áin | 0.25 Ám | 58 | Dual | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Gold | 29 | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Card Extender | Cantilever | Copper Alloy | Non Specified - Dual Edge | 2 | Board Edge Straddle Mount | Female | Polyester Thermoplastic | Black | 10 Áin | 0.25 Ám | 58 | Dual | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Gold | 29 | 3.25 mm | 0.128 in | |||
EDAC Inc. | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 2 | Through Hole | Female | Polyester Thermoplastic | Black | 10 Áin | 0.25 Ám | 58 | Dual | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Gold | 29 | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Card Extender | Cantilever | Copper Alloy | Non Specified - Dual Edge | 2 | Board Edge Straddle Mount | Female | Polyester Thermoplastic | Black | 10 Áin | 0.25 Ám | 58 | Dual | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Gold | 29 | |||||
EDAC Inc. | 0.156 in | 3.96 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 2 | Through Hole | Female | Polyester Thermoplastic | Black | 10 Áin | 0.25 Ám | 58 | Dual | -40 °C | 105 ░C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Gold | 29 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-058 Series
58 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
