111672-1
ActiveTE Connectivity AMP Connectors

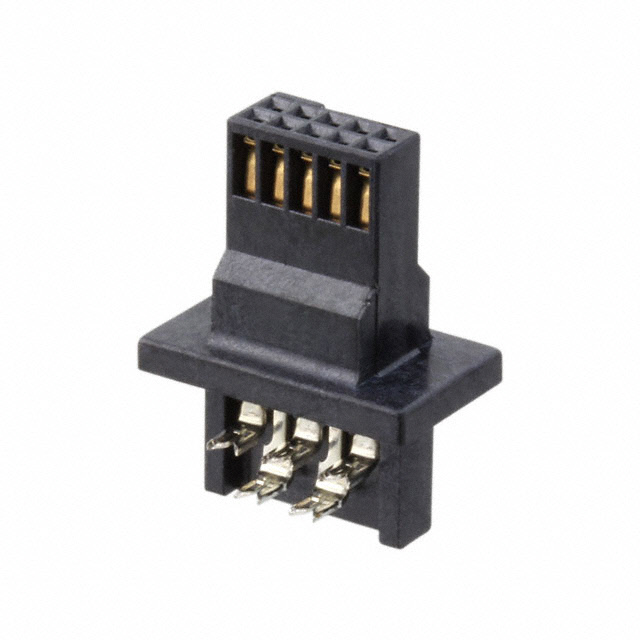

CONN RCPT 10POS IDC 28AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
111672-1
ActiveTE Connectivity AMP Connectors
CONN RCPT 10POS IDC 28AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 111672-1 | 111672 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Type | Female Socket | Female Socket |
| Features | Closed End | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 10 | 10 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 0.05 in | 0.05 in |
| Pitch [x] | 1.27 mm | 1.27 mm |
| Row Spacing | 1.27 mm | 1.27 mm |
| Row Spacing | 0.05 in | 0.05 in |
| Wire Gauge | 28 AWG | 28 AWG |
| Wire Type | Ribbon Cable | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 12.94 | |
| 10 | $ 11.71 | |||
| 42 | $ 11.40 | |||
| 84 | $ 10.96 | |||
| 126 | $ 10.16 | |||
| 252 | $ 10.10 | |||
| 504 | $ 9.72 | |||
| 1008 | $ 8.67 | |||
111672 Series
CONN RCPT 10POS IDC 28AWG GOLD
| Part | Mounting Type | Pitch [x] | Pitch [x] | Number of Positions | Contact Type | Contact Finish | Cable Termination | Color | Features | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Row Spacing | Row Spacing | Wire Type | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-111672-1 | Free Hanging (In-Line) | 0.05 in | 1.27 mm | 10 | Female Socket | Gold | IDC | Black | Closed End | 2 | 0.76 Ám | 30 Áin | Receptacle | 1.27 mm | 0.05 in | Ribbon Cable | 28 AWG |
TE Connectivity AMP Connectors 111672-1 | Free Hanging (In-Line) | 0.05 in | 1.27 mm | 10 | Female Socket | Gold | IDC | Black | Closed End | 2 | 0.76 Ám | 30 Áin | Receptacle | 1.27 mm | 0.05 in | Ribbon Cable | 28 AWG |
Description
General part information
111672 Series
10 Position Rectangular Receptacle Connector IDC Gold 28 AWG
