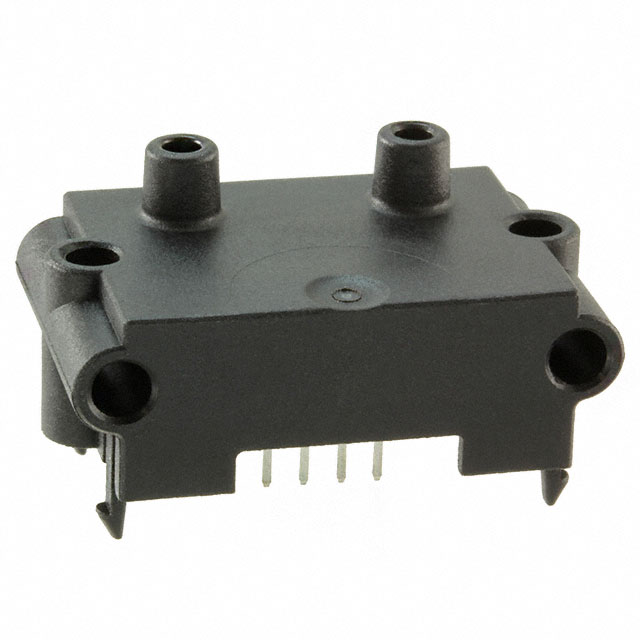

SDP601
ActiveSensirion AG
SENSOR 0.072PSID 16BIT 3SIP
SDP601
ActiveSensirion AG
SENSOR 0.072PSID 16BIT 3SIP
Description
General part information
SDP601
Pressure Sensor ±0.07PSI (±0.5kPa) Differential 16 b 3-SIP Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SDP601 |
|---|---|
| Accuracy | 3 % RH |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure | 14.5 PSI |
| Mounting Type | Through Hole |
| Operating Pressure | 0.07 PSI |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Output Bits | 16 b |
| Output Type | I2C |
| Package / Case | 3-SIP Module |
| Package Name | 3-SIP |
| Port Style | No Port |
| Pressure Type | Differential |
| Termination Style | PC Pin |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
