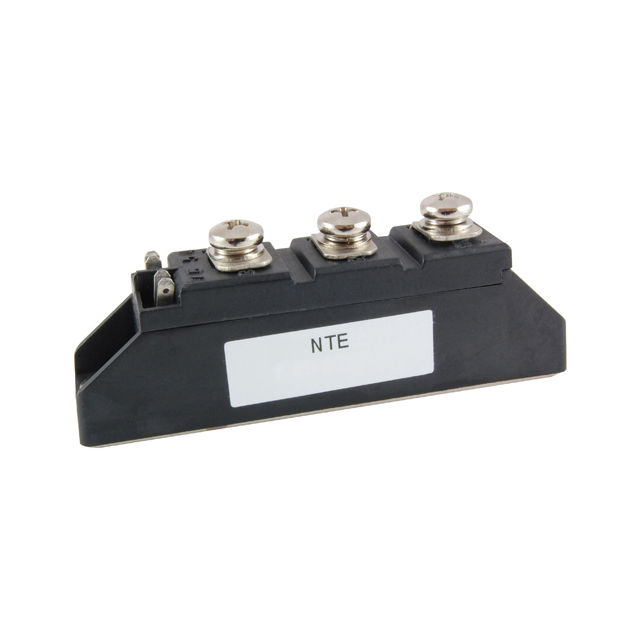

NTE5708
ActiveNTE Electronics, Inc
SCR 1600V 25A MODULE
NTE5708
ActiveNTE Electronics, Inc
SCR 1600V 25A MODULE
Description
General part information
NTE5708
SCR Module 1.6 kV Series Connection - All SCRs Chassis Mount Module
Technical Specifications
Parameters and characteristics for this part
| Specification | NTE5708 |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge (Itsm) | 400 A |
| Current - Non Rep. Surge Frequencies | 50Hz, 60Hz |
| Current - Non Rep. Surge Type | Itsm |
| Current - On State (Max) | 25 A |
| Mounting Type | Chassis Mount |
| Number of SCRs | 2 count |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Structure | Series Connection - All SCRs |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Voltage - Off State | 1.6 kV |
