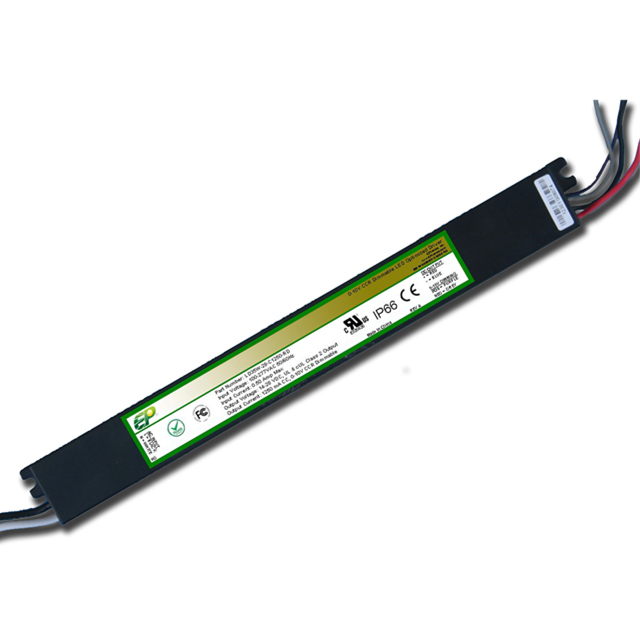

LD35W-54-C0700-RD

Obsolete

EPtronics, Inc.

LED DRIVER AC/DC CC 18-54V 700MA

Search across all available documentation for this part.

Obsolete

EPtronics, Inc.

LED DRIVER AC/DC CC 18-54V 700MA

Technical Specifications

Parameters and characteristics commom to parts in this series

LED DRIVER AC/DC CC 18-54V 700MA

Part	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Number of Outputs	Voltage - Output [Max]	Voltage - Output [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Termination Style	Ratings	Features	Topology	Dimming	Efficiency	Type	Mounting Type
EPtronics, Inc. LD35W-54-C0700-RD	100 VAC	277 VAC	3750 V	700 mA	1	54 V	18 V	213.1 mm	26.7 mm	8.39 in	1.05 in	1.02 in	25.9 mm	CE, cURus, FCC	-30 ░C	60 °C	38 W	Wire Leads	IP65	OCP, OVP, SCP	AC DC Converter	Analog, PWM	85 %	Constant Current	Chassis Mount
EPtronics, Inc. LD35W-36-C1050-RD	100 VAC	277 VAC	3750 V	1.05 A	1	36 V	18 V	213.1 mm	26.7 mm	8.39 in	1.05 in	1.02 in	25.9 mm	CE, cURus, FCC	-30 ░C	60 °C	38 W	Wire Leads	IP65	OCP, OVP, SCP	AC DC Converter	Analog, PWM	84 %	Constant Current	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

700mA 18 ~ 54V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources

No documents available
