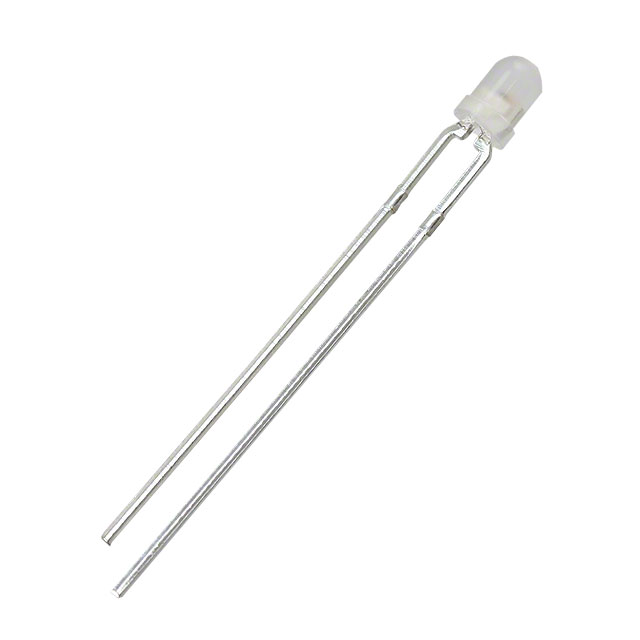

MV5B60
ObsoleteEverlight Electronics Co Ltd
LED UNI-COLOR BLUE 430NM 2-PIN T-100
MV5B60
ObsoleteEverlight Electronics Co Ltd
LED UNI-COLOR BLUE 430NM 2-PIN T-100
Description
General part information
MV5B60
Blue LED Indication - Discrete 3.8V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | MV5B60 |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 6.3 mm |
| Lens Color | Colorless |
| Lens Size | 3 mm |
| Lens Size (Code) | T-1 |
| Lens Style | Round, Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 150 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Package Name | T-1 |
| Viewing Angle | 35 ° |
| Voltage - Forward (Vf) (Typ) | 3.8 V |
| Wavelength - Peak | 430 nm |
