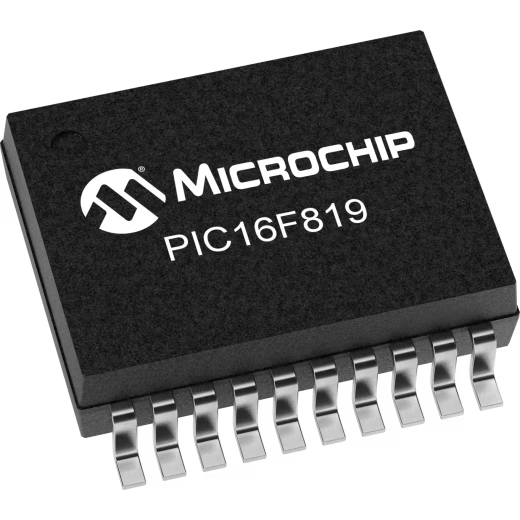

Specification	PIC16F819-E/SS

A/D Channels	5 count
A/D Resolution (bits)	10 bit
Connectivity	I2C, SPI
Core Processor	PIC
Core Size (Bit Width)	8 Bit
EEPROM Size (Depth)	256
EEPROM Size (Width)	8 bit
Mounting Type	Surface Mount
Number of I/O	16
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package Length	0.209 in
Package Name	20-SSOP
Package Width	5.3 mm
Peripherals	WDT, PWM, Brown-out Detect, POR, Reset
Program Memory Depth	2 K
Program Memory Size	3.5 KB
Program Memory Type	FLASH
Program Memory Width	14
RAM Size Depth	256
RAM Size Width	8 bit
Speed	20 MHz
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	4 V

PIC16F819 Series

Part	Core Processor	Operating Temperature (Max)	Operating Temperature (Min)	Speed	EEPROM Size (Width)	EEPROM Size (Depth)	Mounting Type	Package Width	Package Name	Package Length	A/D Channels	A/D Resolution (bits)	Peripherals	Number of I/O	RAM Size Width	RAM Size Depth	Core Size (Bit Width)	Oscillator Type	Program Memory Size	Program Memory Depth	Program Memory Width	Program Memory Type	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Connectivity	Package / Case
Microchip Technology PIC16F819T-I/SS	PIC	85 °C	-40 °C	20 MHz	8 bit	256	Surface Mount	5.3 mm	20-SSOP	0.209 in	5 count	10 bit	Brown-out Detect POR PWM Reset WDT	16	8 bit	256	8 Bit	Internal	3.5 KB	2 K	14	FLASH	4 V	5.5 V	I2C SPI
Microchip Technology PIC16LF819T-I/ML	PIC	85 °C	-40 °C	10 MHz	8 bit	256	Surface Mount	6 mm	28-QFN	6 mm	5 count	10 bit	Brown-out Detect POR PWM Reset WDT	16	8 bit	256	8 Bit	Internal	3.5 KB	2 K	14	FLASH	2 V	5.5 V	I2C SPI	28-VQFN Exposed Pad
Microchip Technology PIC16LF819T-I/SO	PIC	85 °C	-40 °C	10 MHz	8 bit	256	Surface Mount	7.5 mm	18-SOIC	0.295 in	5 count	10 bit	Brown-out Detect POR PWM Reset WDT	16	8 bit	256	8 Bit	Internal	3.5 KB	2 K	14	FLASH	2 V	5.5 V	I2C SPI
Microchip Technology PIC16LF819-I/SOTSL	PIC	85 °C	-40 °C	10 MHz	8 bit	256	Surface Mount	7.5 mm	18-SOIC	0.295 in	5 count	10 bit	Brown-out Detect POR PWM Reset WDT	16	8 bit	256	8 Bit	Internal	3.5 KB	2 K	14	FLASH	2 V	5.5 V	I2C SPI
Microchip Technology PIC16F819T-E/ML	PIC	125 °C	-40 °C	20 MHz	8 bit	256	Surface Mount	6 mm	28-QFN	6 mm	5 count	10 bit	Brown-out Detect POR PWM Reset WDT	16	8 bit	256	8 Bit	Internal	3.5 KB	2 K	14	FLASH	4 V	5.5 V	I2C SPI	28-VQFN Exposed Pad
Microchip Technology PIC16F819T-I/SO	PIC	85 °C	-40 °C	20 MHz	8 bit	256	Surface Mount	7.5 mm	18-SOIC	0.295 in	5 count	10 bit	Brown-out Detect POR PWM Reset WDT	16	8 bit	256	8 Bit	Internal	3.5 KB	2 K	14	FLASH	4 V	5.5 V	I2C SPI
Microchip Technology PIC16F819-I/SS	PIC	85 °C	-40 °C	20 MHz	8 bit	256	Surface Mount	5.3 mm	20-SSOP	0.209 in	5 count	10 bit	Brown-out Detect POR PWM Reset WDT	16	8 bit	256	8 Bit	Internal	3.5 KB	2 K	14	FLASH	4 V	5.5 V	I2C SPI
Microchip Technology PIC16F819T-E/SS	PIC	125 °C	-40 °C	20 MHz	8 bit	256	Surface Mount	5.3 mm	20-SSOP	0.209 in	5 count	10 bit	Brown-out Detect POR PWM Reset WDT	16	8 bit	256	8 Bit	Internal	3.5 KB	2 K	14	FLASH	4 V	5.5 V	I2C SPI
Microchip Technology PIC16F819T-I/ML	PIC	85 °C	-40 °C	20 MHz	8 bit	256	Surface Mount	6 mm	28-QFN	6 mm	5 count	10 bit	Brown-out Detect POR PWM Reset WDT	16	8 bit	256	8 Bit	Internal	3.5 KB	2 K	14	FLASH	4 V	5.5 V	I2C SPI	28-VQFN Exposed Pad
Microchip Technology PIC16LF819-I/SSTSL	PIC	85 °C	-40 °C	10 MHz	8 bit	256	Surface Mount	5.3 mm	20-SSOP	0.209 in	5 count	10 bit	Brown-out Detect POR PWM Reset WDT	16	8 bit	256	8 Bit	Internal	3.5 KB	2 K	14	FLASH	2 V	5.5 V	I2C SPI
