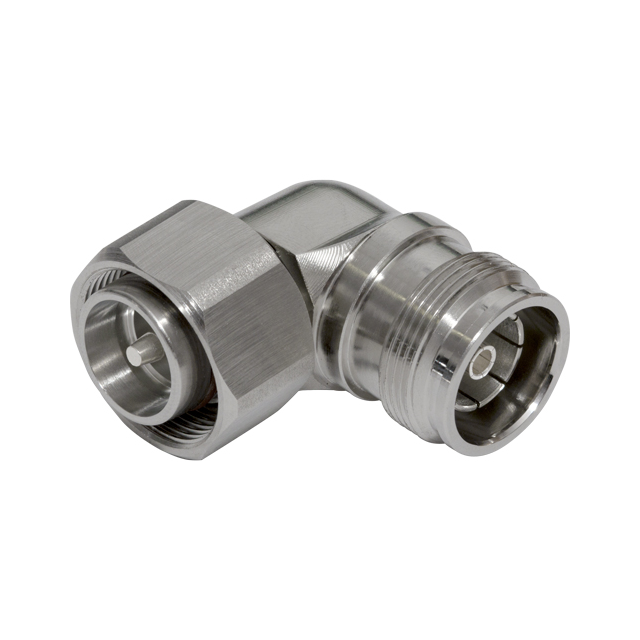

RFD-43M-FRA
ActiveRF Industries
4.3/10 MALE-4.3/10 FEMALE; R/A
Deep-Dive with AI
Search across all available documentation for this part.
RFD-43M-FRA
ActiveRF Industries
4.3/10 MALE-4.3/10 FEMALE; R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RFD-43M-FRA |
|---|---|
| Adapter Series [Max] | 4.3/10 |
| Adapter Series [Min] | 4.3/10 |
| Adapter Type | Plug to Jack |
| Body Finish | White Bronze |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 4.3/10 Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, 4.3/10 Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 6000 MHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 62.79 | |
| 50 | $ 60.05 | |||
| 100 | $ 57.55 | |||
Description
General part information
RFD-43M-FRA
Adapter Coaxial Connector 4.3/10 Plug, Male Pin To 4.3/10 Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
No documents available
