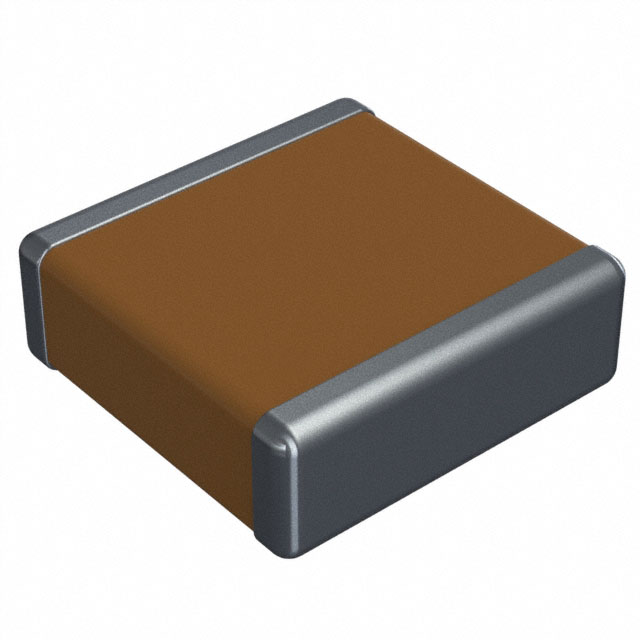

CDR06BX474AKZSAT

Active

Vishay General Semiconductor - Diodes Division

CAP CER 0.47UF 50V 10% BX 2225

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

CAP CER 0.47UF 50V 10% BX 2225

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Failure Rate	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Applications	Mounting Type	Package / Case	Package / Case	Temperature Coefficient	Thickness (Max) [Max]	Thickness (Max) [Max]	Tolerance	Capacitance	Voltage - Rated
Vishay General Semiconductor - Diodes Division CDR06BX474AMZSAT	-55 °C	125 °C	S (0.001%)	0.225 "	5.72 mm	6.35 mm	0.25 in	High Reliability	MLCC Surface Mount	2225	5763 Metric	BX	0.08 in	2.03 mm	20 %	0.47 µF	50 VDC
Vishay General Semiconductor - Diodes Division CDR06BX394AKMMAB	-55 °C	125 °C	M (1%)	0.225 "	5.72 mm	6.35 mm	0.25 in	High Reliability	MLCC Surface Mount	2225	5763 Metric	BX	0.08 in	2.03 mm	10 %	0.39 µF	50 VDC
Vishay General Semiconductor - Diodes Division CDR06BX474AKZSAT	-55 °C	125 °C	S (0.001%)	0.225 "	5.72 mm	6.35 mm	0.25 in	High Reliability	MLCC Surface Mount	2225	5763 Metric	BX	0.08 in	2.03 mm	10 %	0.47 µF	50 VDC
Vishay General Semiconductor - Diodes Division CDR06BX474AKUSAJ	-55 °C	125 °C	S (0.001%)	0.225 "	5.72 mm	6.35 mm	0.25 in	High Reliability	MLCC Surface Mount	2225	5763 Metric	BX	0.08 in	2.03 mm	10 %	0.47 µF	50 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.47 µF ±10% 50V Ceramic Capacitor BX 2225 (5763 Metric)

Technical documentation and resources
