FMCA1801-200CM
ActiveFairview Microwave
CBL ASSY 4.3-10PLUG-QMAPLUG 78.7
FMCA1801-200CM
ActiveFairview Microwave
CBL ASSY 4.3-10PLUG-QMAPLUG 78.7
Description
General part information
FMCA1801-200CM

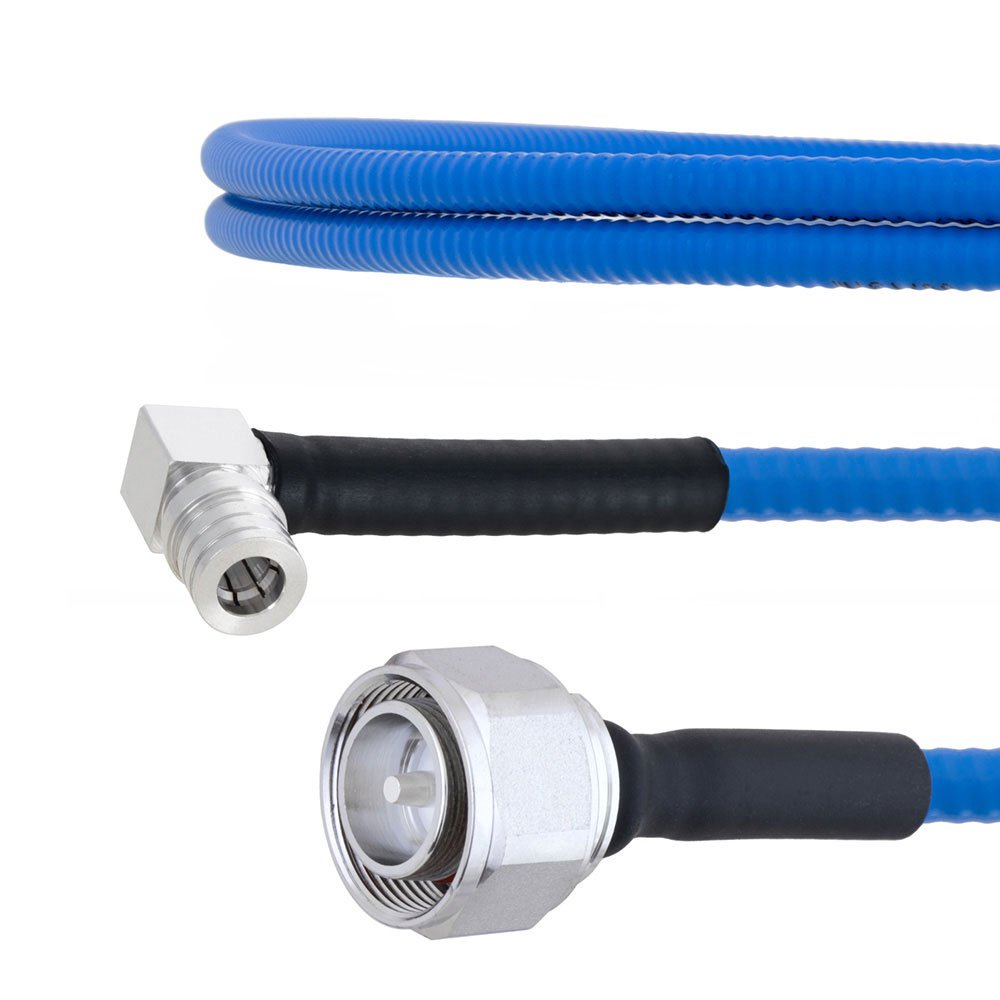

Cable Assembly Coaxial 4.3/10 to QMA SPO-250 78.7" (2.0m) 6.6'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1801-200CM |
|---|---|
| 1st Connector | 4.3/10 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 4.3 mm |
| 1st Connector Dimension (2) | 10 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 4.3, 4.3 mm |
| 1st Connector Size (Dimension 2) | 10, 10 mm |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, QMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPO |
| Cable Type Size | 250 |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length (ft) | 6.6 ft |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 4.3/10 to QMA |
