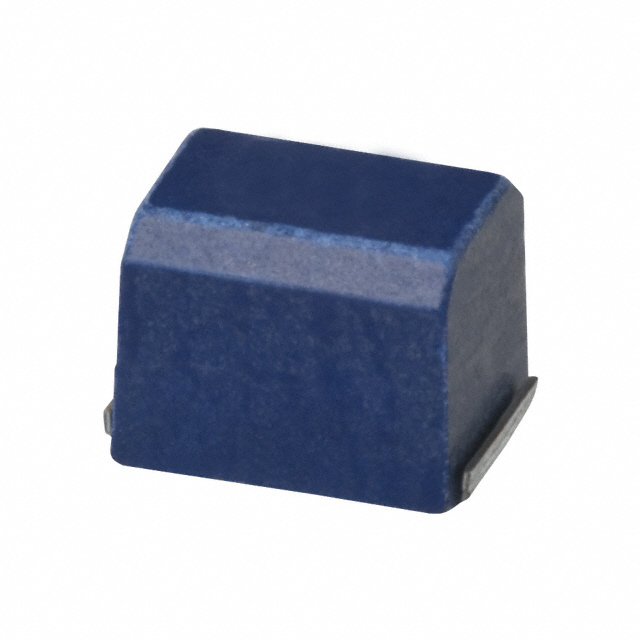

NLC453232T-680K
ObsoleteTDK Corporation
FIXED IND 68UH 220MA 2.6 OHM SMD
NLC453232T-680K
ObsoleteTDK Corporation
FIXED IND 68UH 220MA 2.6 OHM SMD
Description
General part information
NLC453232T-680K
68 µH Unshielded Drum Core, Wirewound Inductor 220 mA 2.6Ohm Max 1812 (4532 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | NLC453232T-680K |
|---|---|
| Current Rating | 0.22 A |
| DC Resistance (DCR) (Max) | 2.6 Ohm |
| Frequency - Self Resonant | 10 MHz |
| Height - Seated (Max) | 0.134 in |
| Inductance | 68 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1812 (4532 Metric) |
| Package Name | 1812 |
| Q | 10 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.126 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
