00585870

Active

Menbers

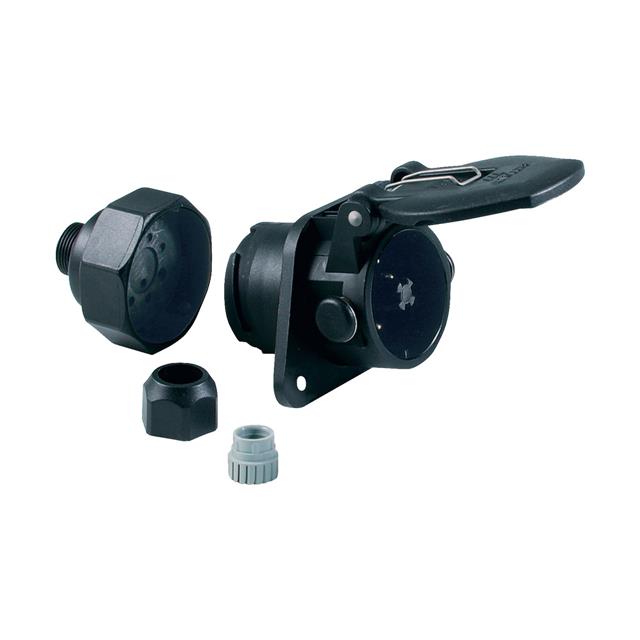

CONN RCPT MALE 5POS CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

00585870

Active

Menbers

CONN RCPT MALE 5POS CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 36.62

Description

General part information

- Series

5 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	00585870	- Series

	-	-
1st Connector Gender	-	Female Sockets
1st Connector Mounting Type	-	Free Hanging (In-Line)
1st Connector Number of Positions	-	5 - 15
1st Connector Number of Positions Loaded	-	All
1st Connector Type	-	Plug
2nd Connector Gender	-	Female Sockets, Female Sockets (2)
2nd Connector Mounting Type	-	Free Hanging (In-Line)
2nd Connector Number of Positions	-	5 - 15
2nd Connector Number of Positions Loaded	-	All
2nd Connector Type	-	Plug
2nd Connector Type	-	2
Accessory Type	-	Disconnect Switch, Grommet
Applications	Industrial, Automotive	Industrial, Automotive
Assembly Configuration	-	Standard
Backshell Material, Plating	Plastic	Plastic, Aluminum
Cable Material	-	Polyurethane (PUR)
Cable Opening	-	15.5 mm
Cable Opening	-	0.61 in
Cable Type	-	Round Coiled
Color	Black	Black, Silver, Green
Connector Type	Receptacle, Male Pins	Female Sockets, Plug, Receptacle, Male Pins
Contact Finish - Mating	-	Nickel
Contact Material	-	Brass
Fastening Type	Bayonet Lock	Latch Lock, Push-Pull, Bayonet Lock
Features	Cap (Cover), Backshell	Backshell, Cap (Cover), Strain Relief
For Use With/Related Products	-	Batteries, Vehicle Connectors
Ingress Protection	-	IP65 - Dust Tight, Water Resistant, IP54 - Dust Protected, Water Resistant
Insert Material	Plastic	Plastic
Length	-	4.5 m
Length	-	14.76 '
Material	-	Rubber
Mounting Feature	Flange	Flange
Mounting Type	Free Hanging (In-Line), Panel Mount	Free Hanging (In-Line), Panel Mount, Right Angle
Number of Positions	-	7 - 15
Orientation	Keyed	Keyed, N
Primary Material	Plastic	Plastic, Metal
Shell Material	Plastic	Plastic, Aluminum
Shielding	Unshielded	Unshielded
Termination	Crimp	Screw, Solder Tabs, Crimp
Usage	-	Industrial Environments
Voltage Rating	24 VDC	12 - 24 VDC

- Series
