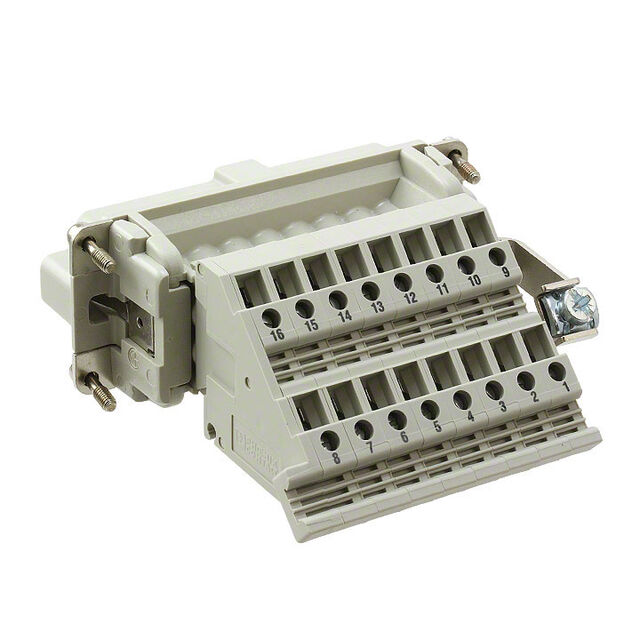

1772900
ObsoletePhoenix Contact
INSERT MALE 16POS TERMINAL BLOCK
1772900
ObsoletePhoenix Contact
INSERT MALE 16POS TERMINAL BLOCK
Description
General part information
1772900
Male Insert 16 Position Terminal Block, Straight - Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | 1772900 |
|---|---|
| Connector Type | Insert |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 10 A |
| Gender | Male |
| Housing Material | Nylon, PA, PC, Polycarbonate, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 16 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B16 |
| Termination Style | Terminal Block, Straight - Screw |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
