Specification	1420921

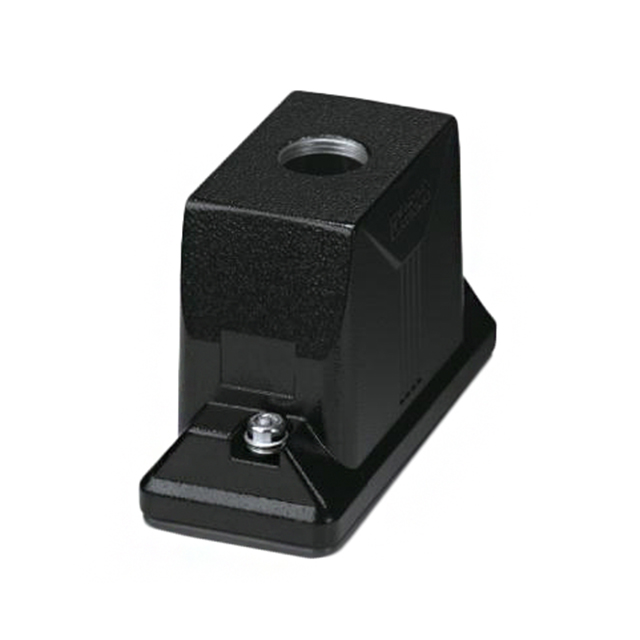

Connector Type	Hood
Features	Salt Water Resistant
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP69K, IP68, IP66
Lock Location	Screw Locks on Hood
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	B16
Size / Dimension Height	2.913 in
Size / Dimension Length	4.937 in
Size / Dimension Width	2.244 in
Style	Top Entry
Thread Size	M25

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
