Description
General part information
6XV18812A

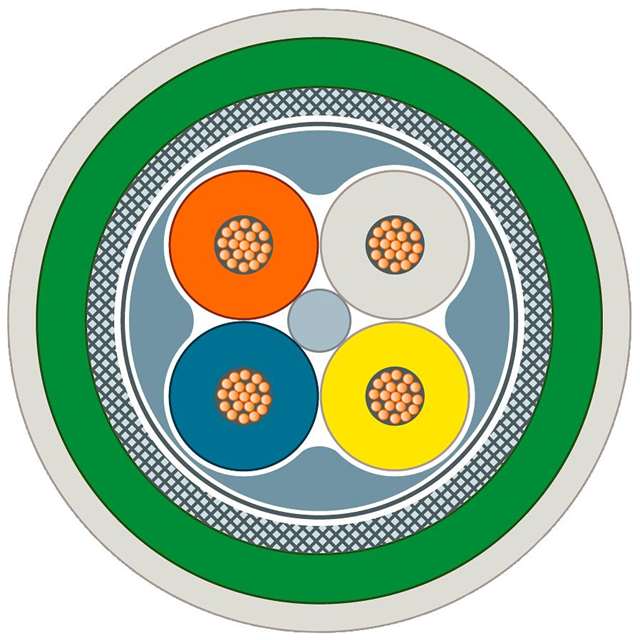

4 Conductor Multi-Conductor Cable Green 22 AWG Foil, Braid
Technical Specifications
Parameters and characteristics for this part
| Specification | 6XV18812A |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Polyethylene (PE) |
| Jacket (Insulation) Diameter | 0.256 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Fluorinated Ethylene-Propylene (FEP) |
| Jacket Color | Green |
| Number of Conductors | 4 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Material | Aluminum, Tinned, Copper |
| Shield Type | Braid, Foil |
| Voltage | 80 V |
| Wire Gauge | 22 AWG |
