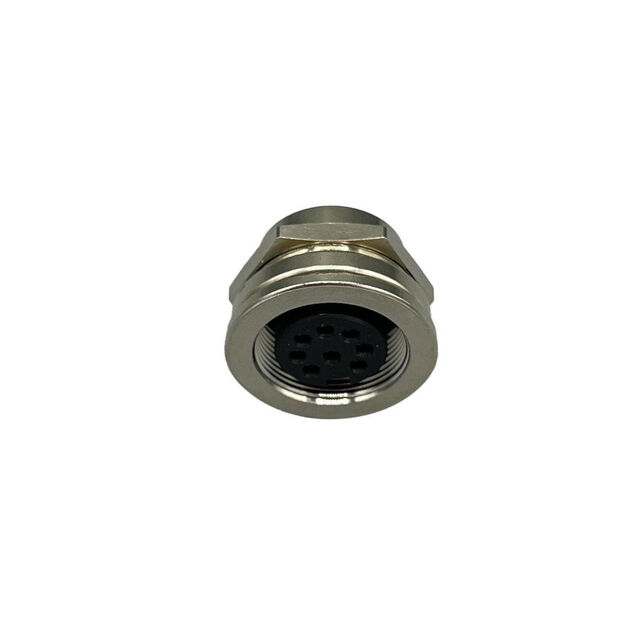

879-008-203RF01
ActiveNorComp Inc.
CIRCULAR CONNECTOR, M16 879 SERIES, PANEL MOUNT RECEPTACLE, 8 CONTACTS, SOLDER SOCKET, THREADED
879-008-203RF01
ActiveNorComp Inc.
CIRCULAR CONNECTOR, M16 879 SERIES, PANEL MOUNT RECEPTACLE, 8 CONTACTS, SOLDER SOCKET, THREADED
Description
General part information
879-008-203RF01
8 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 879-008-203RF01 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating | 5 A |
| Fastening Type | Threaded |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Positions | 8 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M16-8 |
| Shielding | Shielded |
| Termination | Solder Cup |
| Voltage Rating | 250 V |
